AT-8350GB Installation Guide
19
Duplex Mode
Each twisted pair port on the switch can operate in either half- or full-
duplex mode. The twisted pair ports are IEEE 802.3u-compliant and will
Auto-Negotiate the duplex mode setting. If the end node connected to a
twisted pair port on the switch is capable of full-duplex operation, the
switch sets the port to full-duplex. If the end node is capable of only half-
duplex, the port is set to half-duplex.
If desired, Auto-Negotiation on one or all of the twisted pair ports can be
disabled so that you can set the duplex mode manually through the
switch’s management software.
RJ-45 Port Pinouts

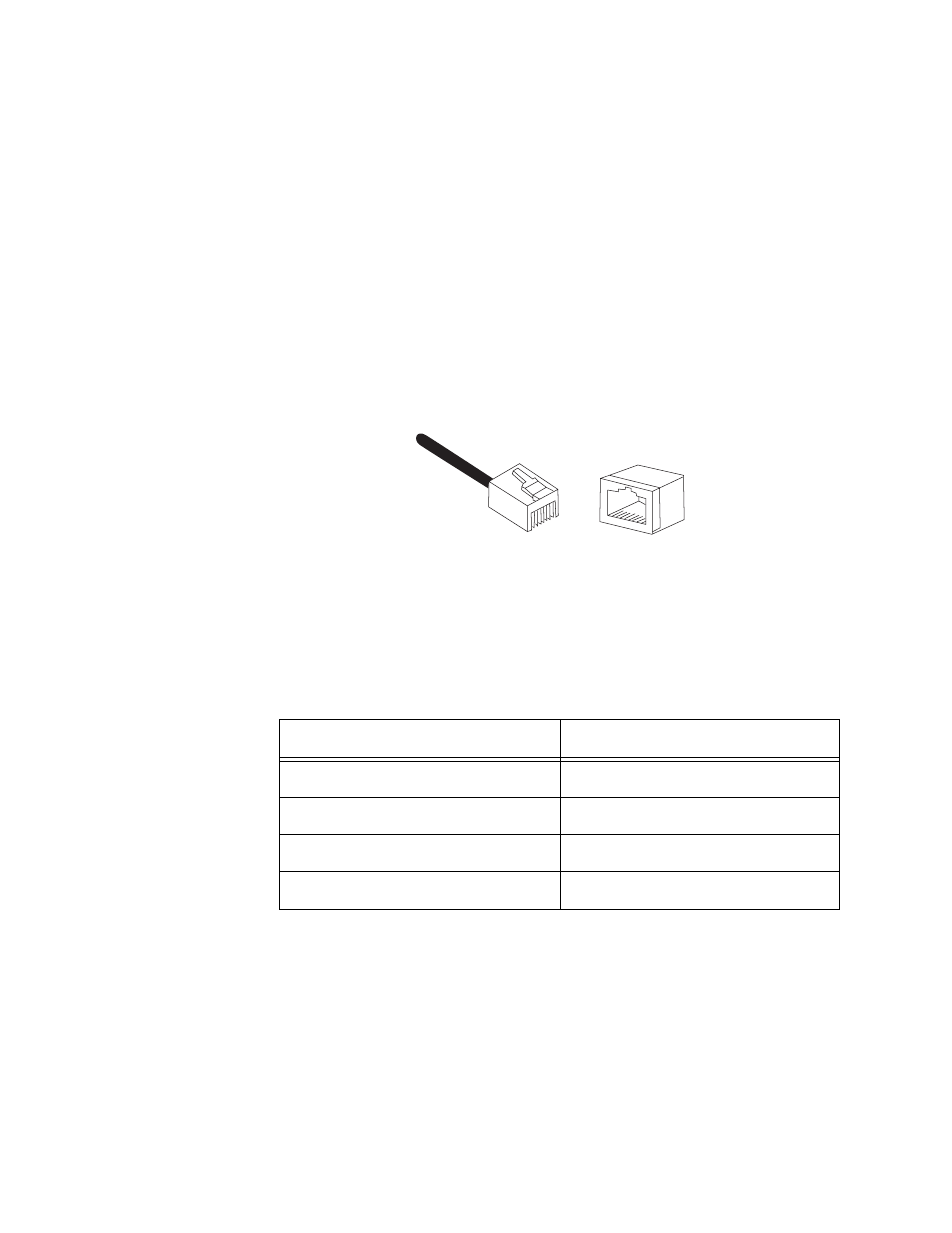

Figure 4 illustrates the pin layout to an RJ-45 connector and port.
Figure 4 RJ-45 Connector and Port Pin Layout
Table 1 lists the RJ-45 pin signals when a twisted pair port is operating in
the MDI configuration.
Table 1 MDI Pin Signals (10/100 Mbps)
Pin Signal
1 TX+
2 TX-
3 RX+
6 RX-
8
8
1 1
