Page 24
Product Description
24
System LEDs

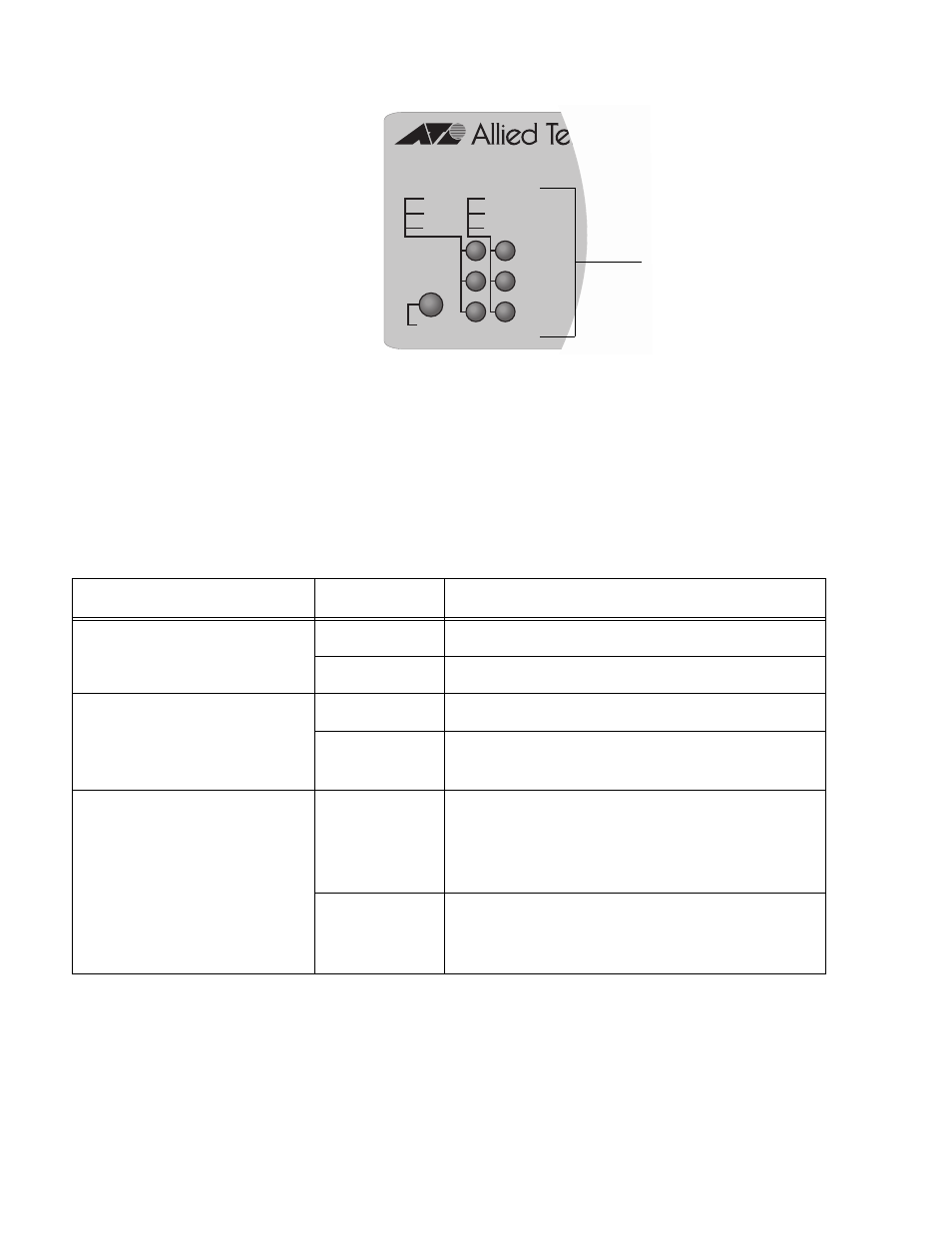

Figure 9 System LEDs
The system LEDs on the left side of front panel display general status
information about the entire switch. The system LEDs are defined in
Table 4.
Fast Ethernet Switch
AT-8350GB
FAULT
PWR
RPS
LINK
100
FULL
MODE
System LEDs
Table 4 System LEDs
LED
State
Description
PWR
Green
System power is ON.
OFF
System power is OFF.
RPS
Optional Redundant Power
Supply Unit
Green
Redundant power supply unit is ON.
OFF
Redundant power supply unit is OFF or
is not connected.
FAULT
Green
The switch or management software has
malfunctioned. (Refer to Chapter 3,
Troubleshooting on page 60 for instructions on
how to determine and repair the problem.)
Flashing Green The switch is loading its operating software,
running diagnostic tests, writing messages to
FLASH, or downloading files using XMODEM.
