AT-8350GB Installation Guide
17
Hardware Features
The following sections describe these hardware features of the
AT-8350GB Fast Ethernet switch:
❑ 10/100Base-TX and 10/100/1000Base-T Ports
❑ Gigabit Interface Converter (GBIC) Slots
❑ Stacking Ports
❑ Expansion Slot
❑ System LEDs
❑ Port LEDs
❑ Gigabit Connector LEDs
❑ RS-232 Terminal Port
❑ AC Power Connector
❑ AT-RPS2001 Redundant Power Supply Unit
❑ AT-RPS2004 Redundant Power Supply Unit
Twisted Pair
Ports

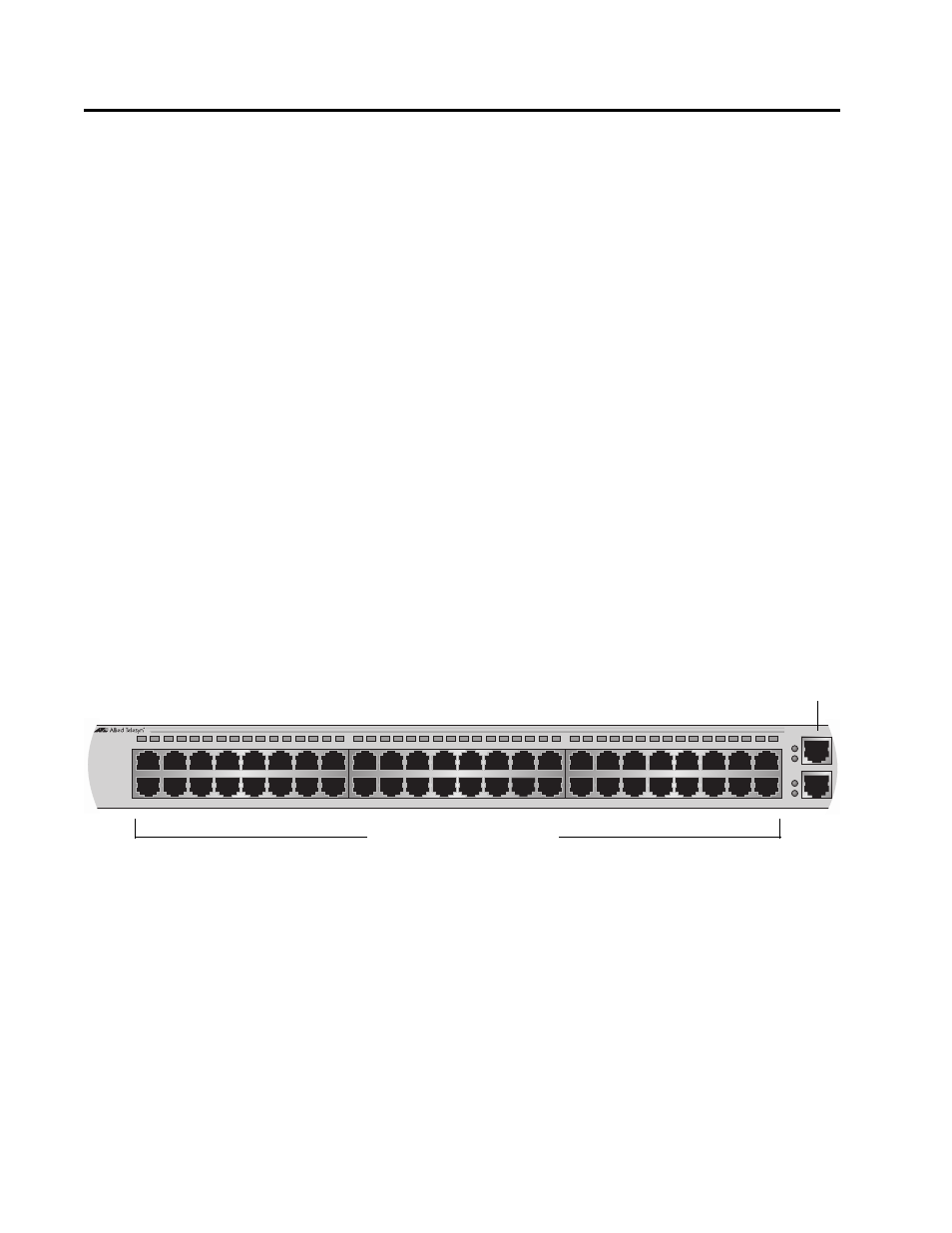

Figure 3 Twisted Pair Ports
The AT-8350GB Fast Ethernet switch features 48 10/100 Mbps twisted
pair ports and two 10/100/1000 Mbps twisted pair ports. The features of
the twisted pair ports are described below.
Type of Connector
All of the twisted pair ports feature 8-pin RJ-45 connectors. (For the port
pinout details, refer to RJ-45 Port Pinouts on page 19.)
10/100Base-TX Ports
10/100/1000Base-T Ports
1 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
S
M
S
M
