Getting Started with the Graphical User Interface (GUI) 33
Software Release 2.6.1
C613-02030-00 REV B
To modify an existing item, select it by clicking on the option button at the
beginning of its entry in the selection table. Then click the Modify button. This
opens the popup “modify” page, which lets you expand or change the
configuration (for example, change the Hello interval for a PIM interface; see
Figure 9 on page 34).
To delete or destroy an item, select it by clicking on the option button at the
beginning of its entry in the selection table. Then click the Remove button.

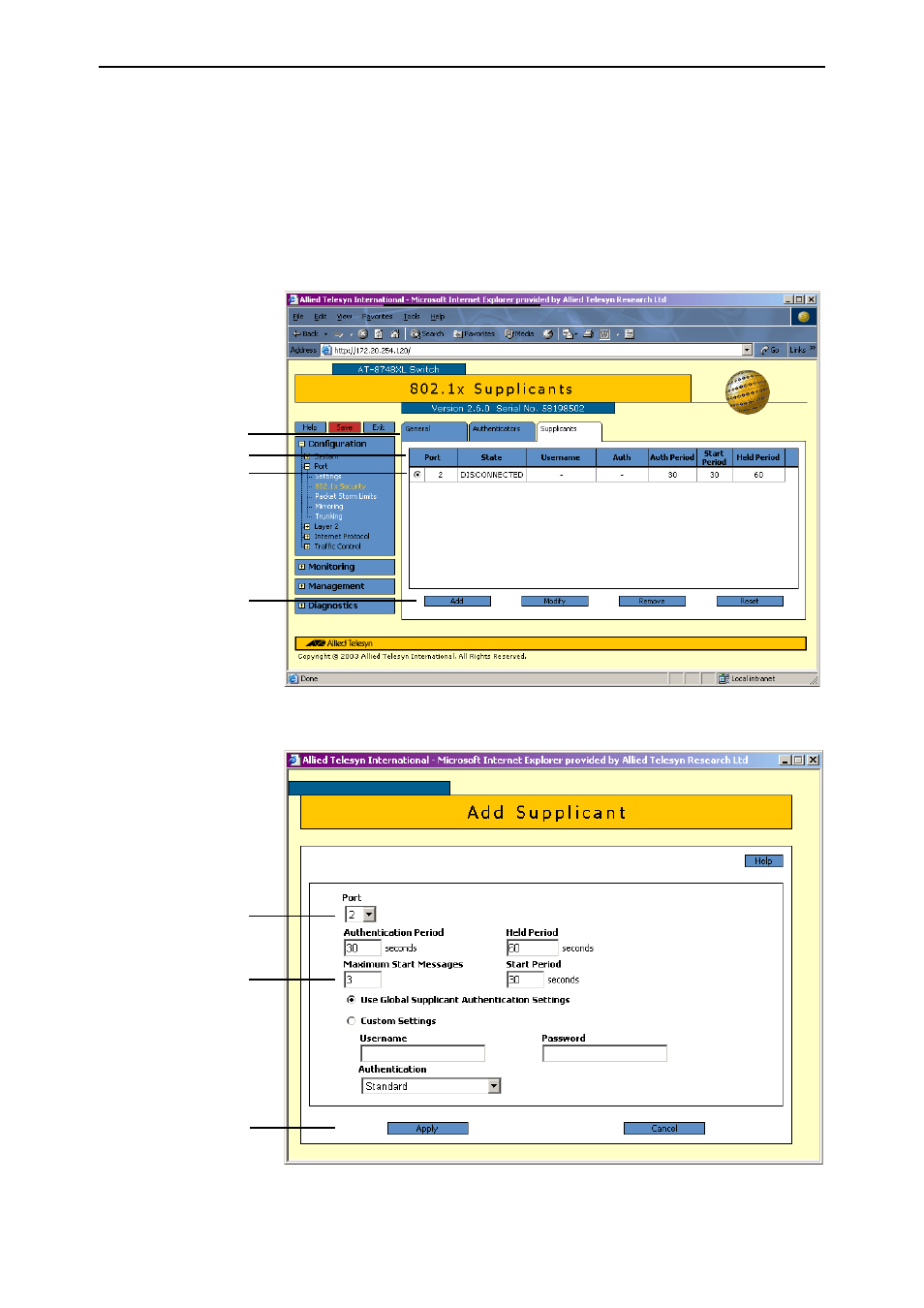

Figure 7: An example of a configuration page with a selection table
Figure 8: An example of a popup “add” page
Heading row
Add, Modify and
Remove buttons
Radio button
Tabs
Select list
Apply and Cancel
buttons
Text field
