System status – Allied Telesis AT-8700XL Series Switch User Manual
Page 31
Getting Started with the Graphical User Interface (GUI)
31
Software Release 2.6.1
C613-02030-00 REV B
System Status
The GUI opens to display the System Status page. Figure 6 points out key
information contained on the page.

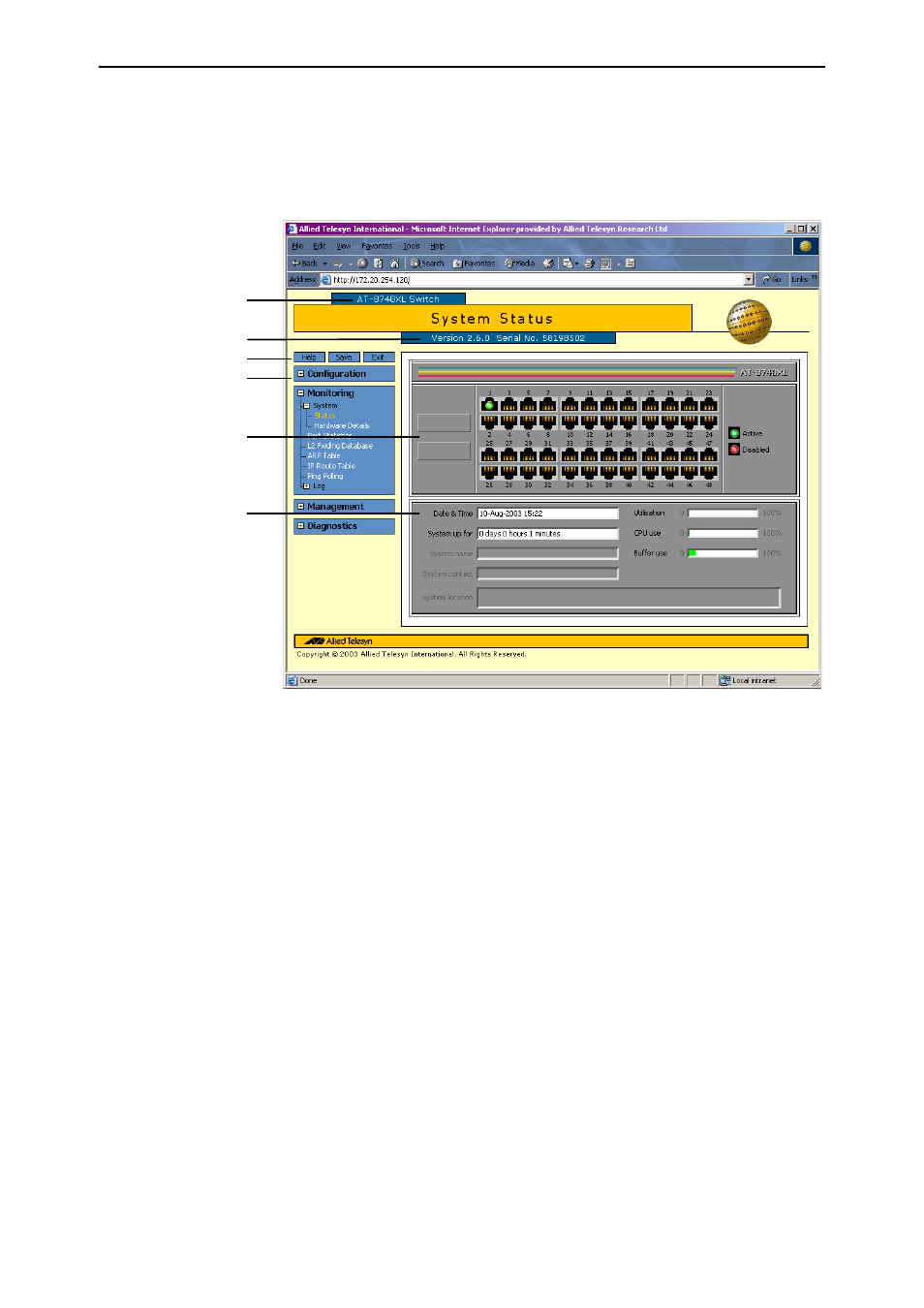

Figure 6: The System Status page
Model name
Help, Save and Exit
Sidebar menu
System status
Port status
Software release
