AT-WA7400 Management Software User’s Guide
249
To configure an external RADIUS server, perform the following procedure:
1. On the Security Settings page, verify that the Authentication Server
field is set to “External,” as shown in Figure 21.

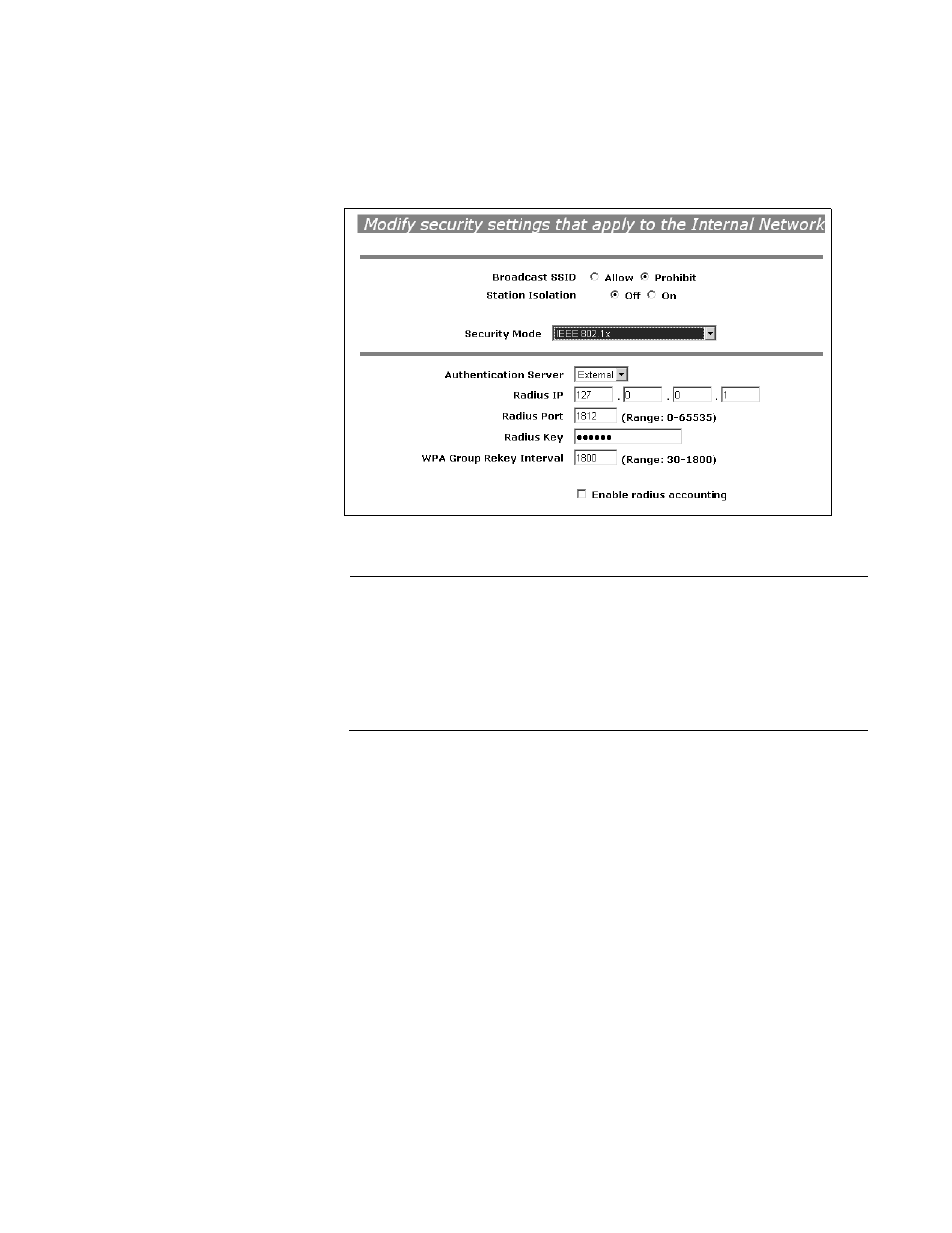

Figure 21. Security Settings Page
Note
The RADIUS server is identified by its IP address and UDP port
numbers for the different services it provides. With firmware version
1.0 and greater, the RADIUS server User Datagram Protocol (UDP)
ports used by the access point are configurable. (The AT-WA7400
Management Software defaults to use RADIUS server UDP port
1812 for authentication and port 1813 for accounting.)
