Chapter 18: Backing Up and Restoring a Configuration
212
Backing up the Configuration Settings for an Access Point
To save a copy of the current settings on an access point to a backup
configuration file (
.cbk format), perform the following procedure:
1. From the main menu, select Advanced > Backup/Restore.
The Backup/Restore page is shown in Figure 66.

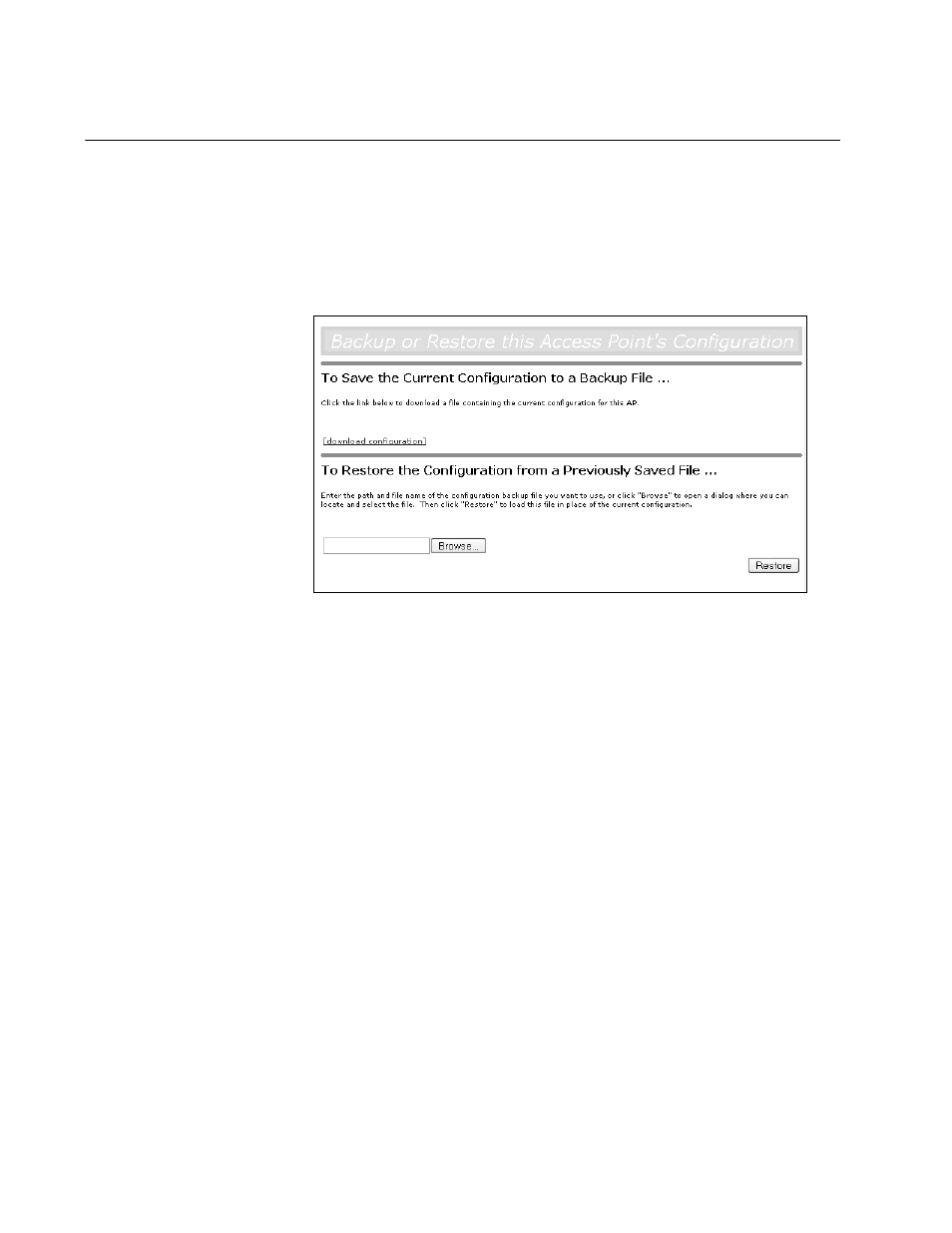

Figure 66. Backup/Restore Page
2. In the top section of the page, click download configuration.
A File Download or Open dialog box is displayed
3. Choose the Save option in this first dialog box.
The file browser window opens.
4. Navigate to the directory where you want to save the file, and click OK
to save the file.
You can keep the default file name (apconfig.cbk) or rename the
backup file, but be sure to save the file with a .cbk extension.
