Chapter 22: GARP VLAN Registration Protocol
368 Section V: Virtual LANs
Displaying the GVRP Database
To display the GVRP database, perform the following procedure:
1. From the Home page, select Monitoring.
The Monitoring System page is displayed with the General tab
selected by default, as shown in Figure 6 on page 42.
2. From the Monitoring menu, select the Layer 2 option.
The Layer 2 page is displayed with the MAC Address tab displayed by
default.
3. Select the GVRP tab.
The GVRP tab is shown in Figure 146 on page 365.
4. In the View GVRP Parameters section, click View GVRP Database.
5. Click View.
The GVRP Database page is shown in Figure 148.

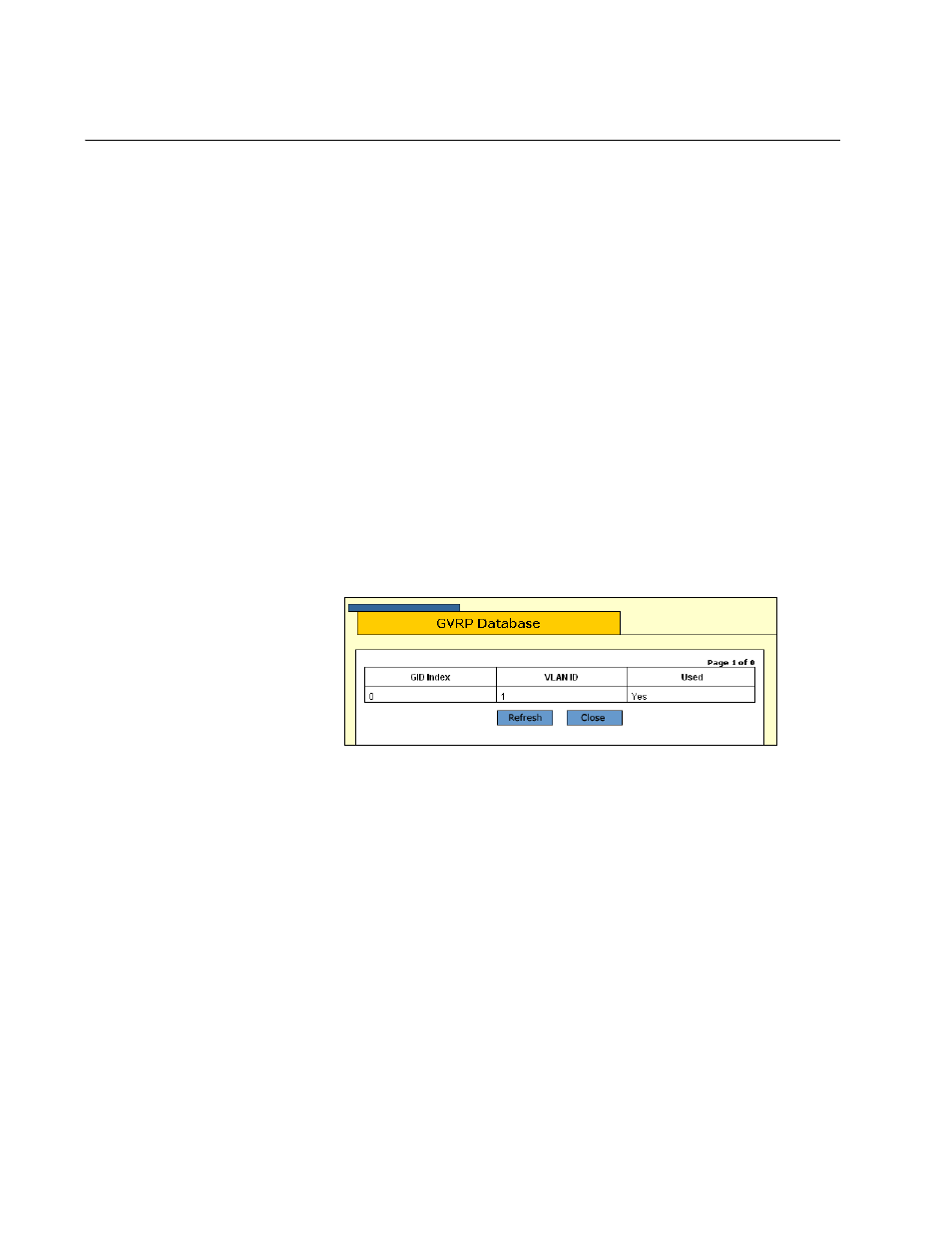

Figure 148. GVRP Database Page
The GVRP Database page provides the following information:
GID Index
The value of the GID index corresponding to the attribute.
VLAN ID
The value of the attribute.
Used
Whether the GID index is currently being used by any port in the
GARP application.
