Chapter 11: Event Logs and Syslog Servers
156 Section II: Advanced Operations
Modifying a Log
Output Definition
To modify a log output definition, perform the following procedure:
1. From the home page, select Configuration.
The System page is displayed with the General tab selected by
default, as shown in Figure 5 on page 38.
2. Select the Event Log tab.
The Event log tab is shown in Figure 40 on page 143.
3. In the Configure Log Outputs section, Select the log output file that you
want to modify and click Modify.
The Configure Log Outputs section is shown in Figure 46.

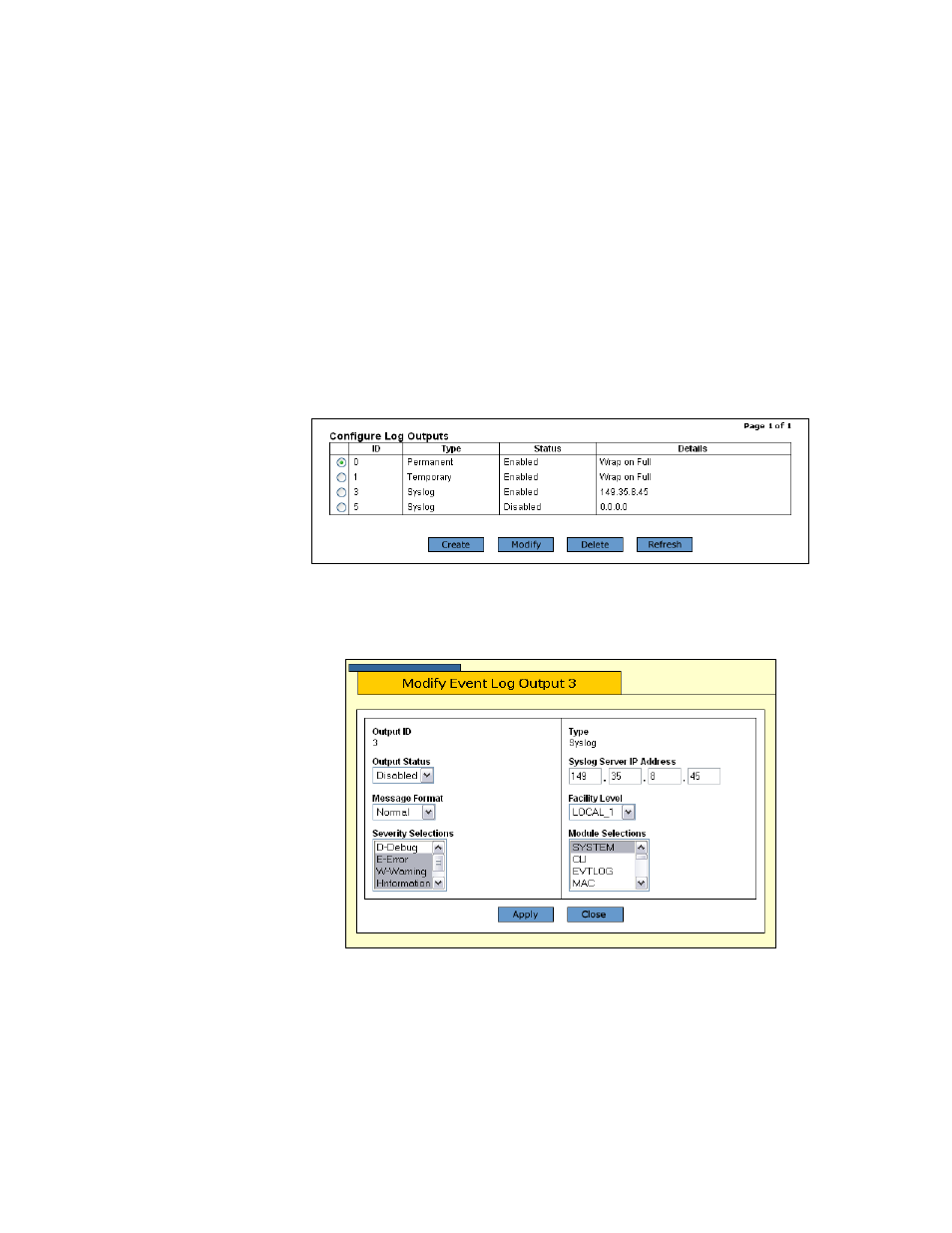

Figure 46. Configure Log Outputs Section
The Modify Event Log Output page is shown in Figure 47.
Figure 47. Modify Event Log Output Page
4. Modify the following parameters as necessary:
Output ID
An ID number for the log output.
