Chapter 20: Multiple Spanning Tree Protocol
326 Section IV: Spanning Tree Protocols
Creating, Deleting, or Modifying MSTI IDs
To create, delete, or modify MSTI IDs, perform one of the following
procedures.
Creating an
MSTI ID
To create an MSTI ID, perform the following procedure:
1. From the home page, select Configuration.
The Configuration System page is displayed with the General tab
selected by default, as shown in Figure 5 on page 38.
2. From the Configuration menu, select the Layer 2 option.
The Layer 2 page is displayed with the MAC Address tab selected by
default, as shown in Figure 25 on page 94.
3. Select the Spanning Tree tab.
The Spanning Tree tab is shown in Figure 123 on page 302.
4. Click Configure.
The expanded MSTP Spanning Tree tab is shown in Figure 134 on
page 323.
5. In the CIST/MSTI Table section of the tab, click Add.
The Add New MSTI page is shown in Figure 135.

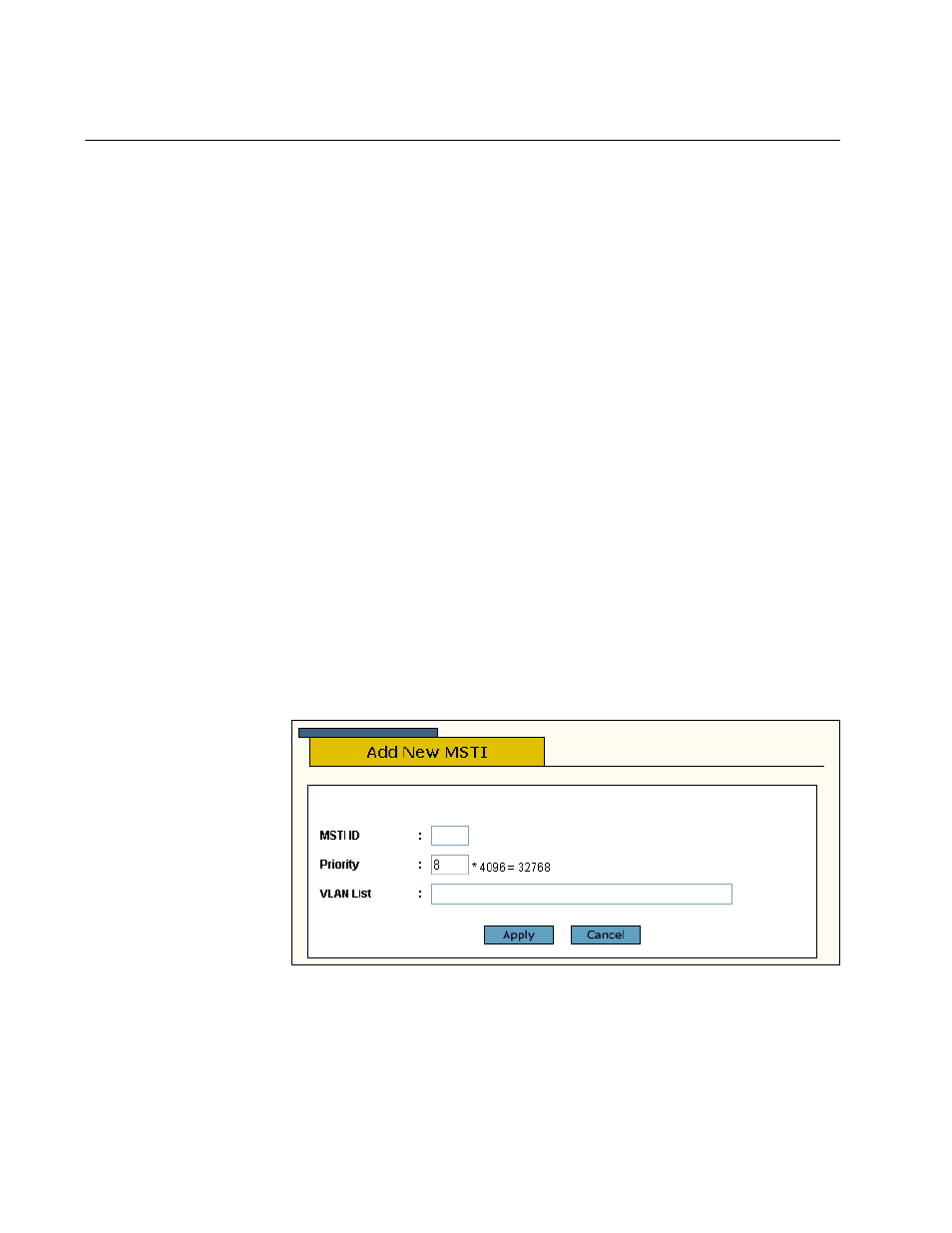

Figure 135. Add New MSTI Page
6. In the MSTI ID field, enter a new MSTI ID. The range is 1 to 15.
