AlliedView™-EMS 3.11 Device Manager User’s Guide Page 93 of 130
7.2.4.1 Sort
To sort table items, click a column title. When you click the column title, table items are
sorted by the column in ascending order. One more click sorts the items in descending
order. To restore the original order, click the Reset Table button.
7.2.4.2 Reset Table Button
: Reorders table items after using sorting function.
7.2.5 Plot Chart Tab
In the Plot Chart tab, network statistics are shown in the time-scaled plotting graph. Data is
updated at the polling interval. The horizontal axis contains a maximum of the 40 latest
values.
Topics:
• Popup Display

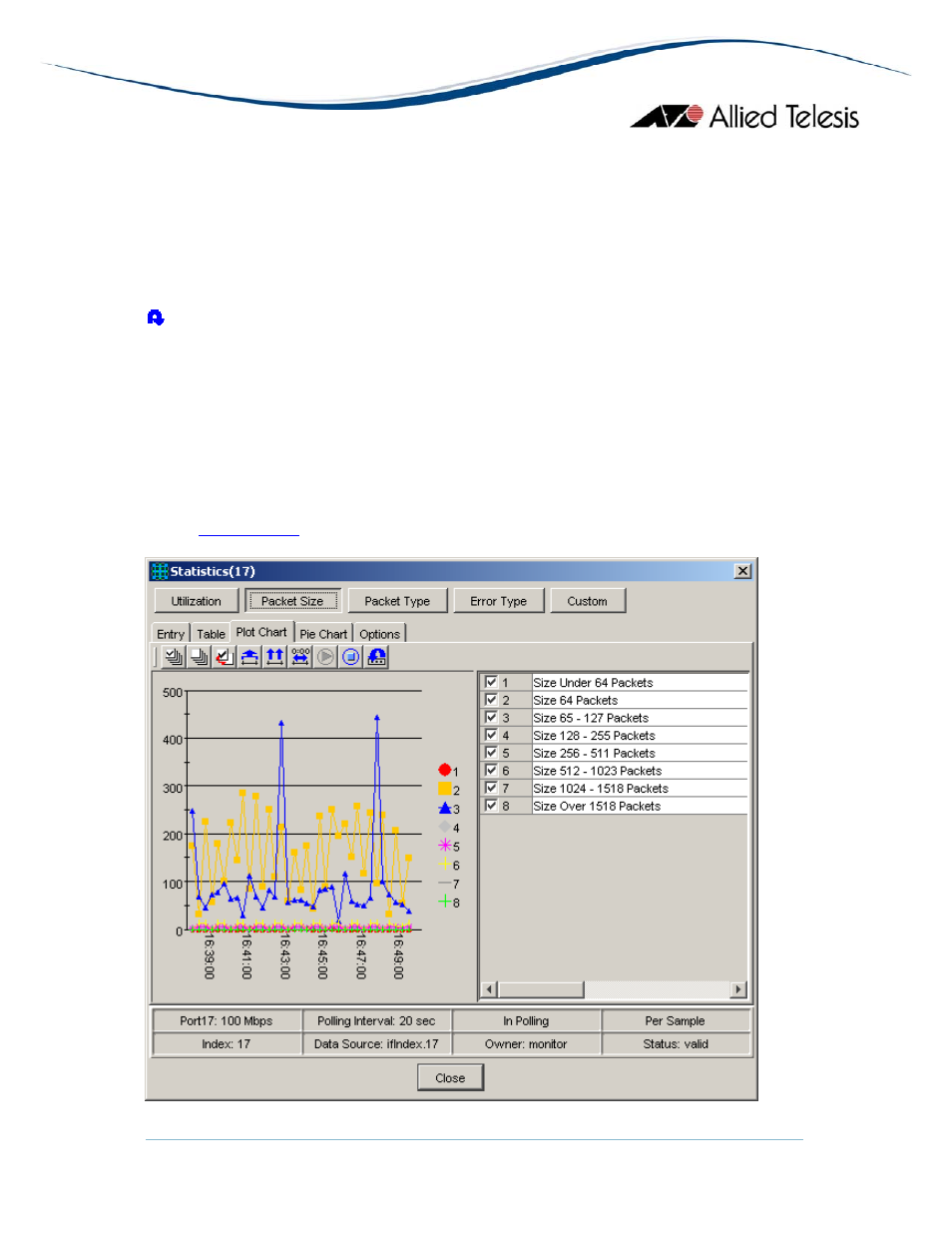

RMON Statistics Plot Chart tab
