Allied Telesis AlliedView-EMS 3.11 DEVICE MANAGEMENT - Manual (Page 105)

AlliedView™-EMS 3.11 Device Manager User’s Guide Page 105 of 130
7.3.3.3 Add Button
: adds a new entry to the RMON History control table. When you click this button, the
Add Control Table Entry dialog box appears. Enter the following parameters, then click OK
to create an entry.
Index
The index number used to identify this entry.
Data Source
The index of the interface on which the RMON agent collects data.
Request Buckets
The number of values which you want the RMON agent to store.
Sampling Interval
The interval at which the RMON agent retrieves data.
Owner
The creator (owner) of this entry.

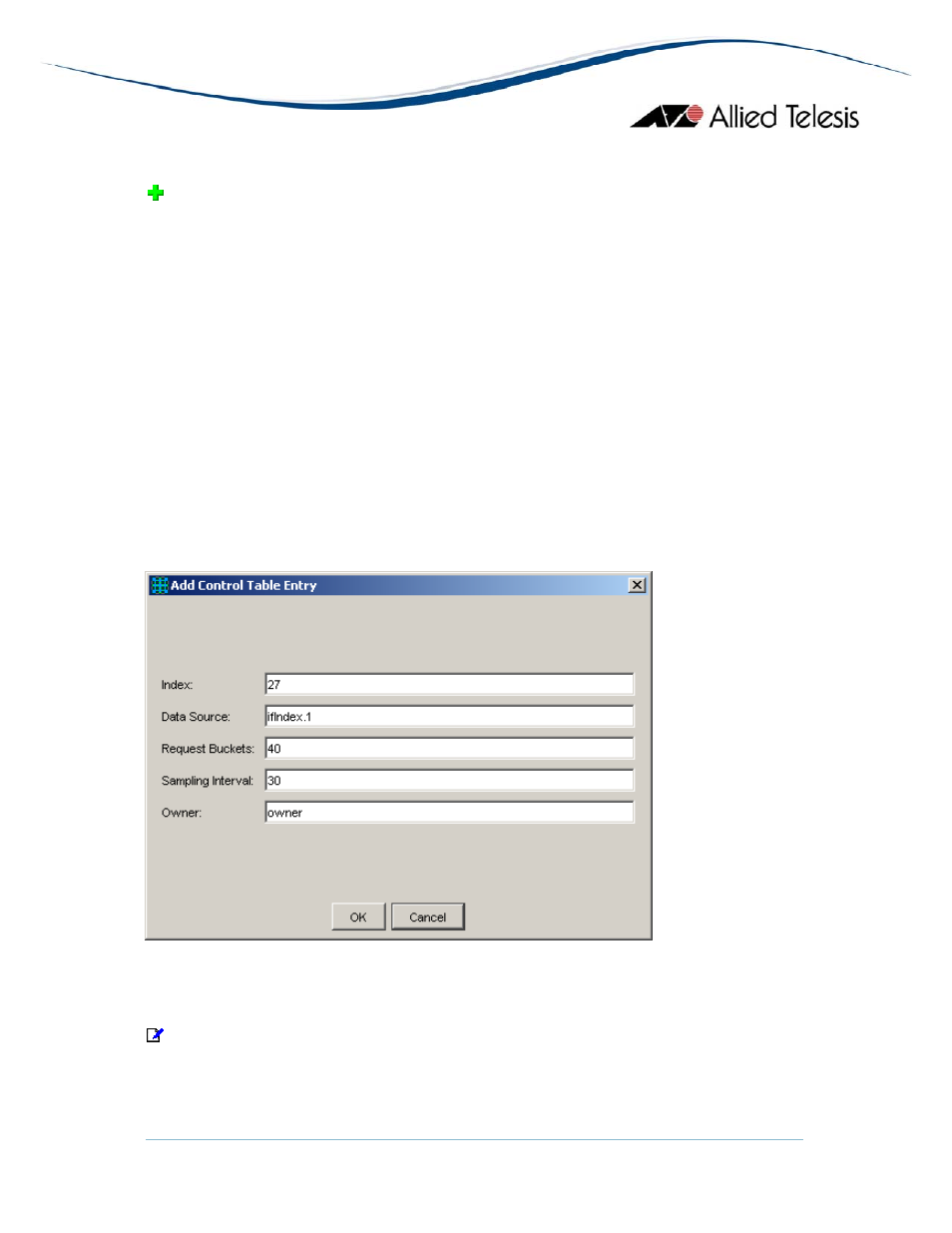

Add Control Table Entry dialog box
7.3.3.4 Edit Button
: changes the selected entry. To edit the entry, select an entry on the table then click the
Edit button. The Modify Control Table Entry dialog box appears. Change the settings, then
click OK. You can also open this dialog box by double-clicking the desired entry.
