AlliedView™-EMS 3.11 Device Manager User’s Guide

Page 83 of 130

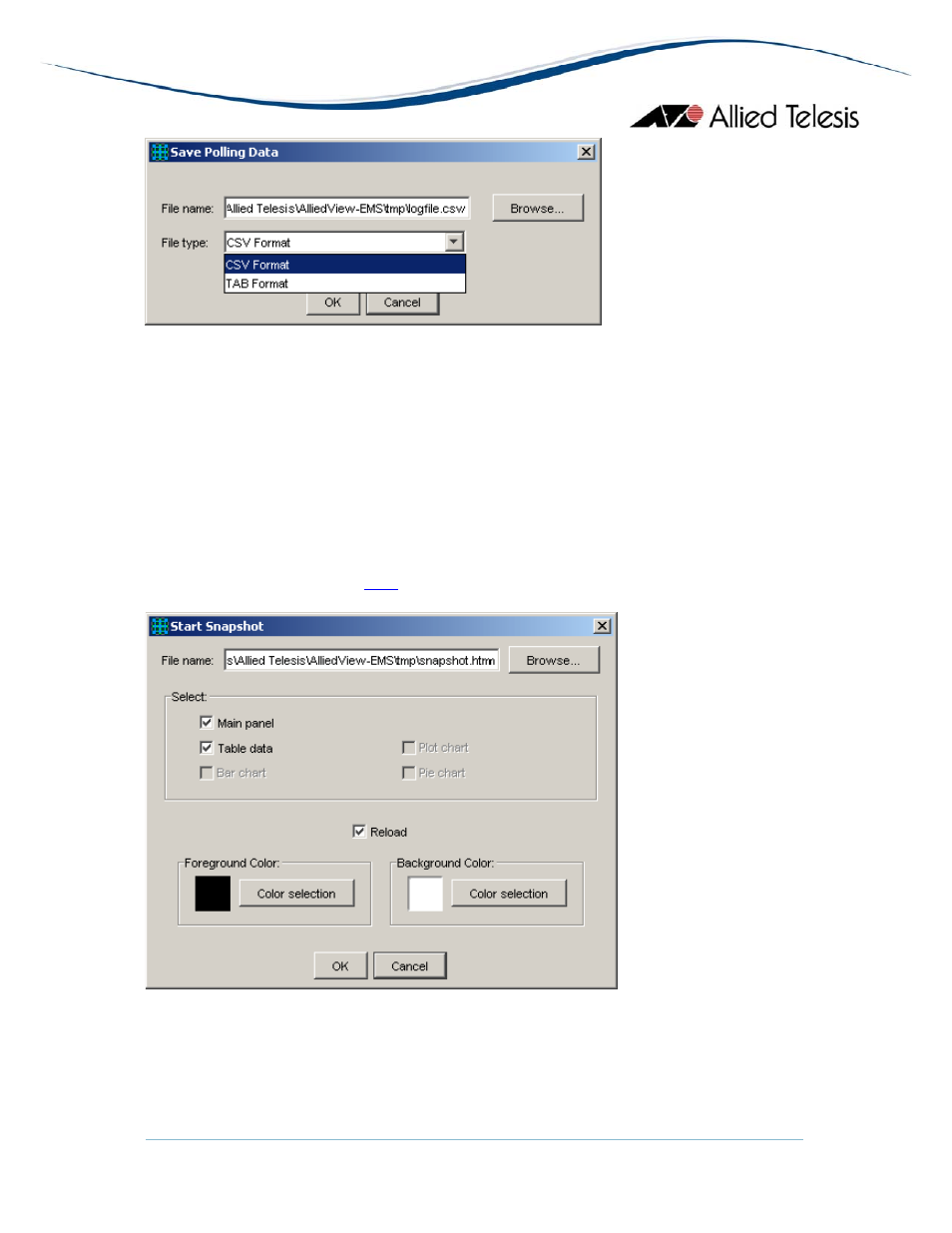

Save polling data

6.5.5 Start Snapshot

Clicking this button opens the Start Snapshot window. Use this window to save the
information displayed in the front panel, as well as tables or charts representing device

information. Use the 'Browse' button to select the directory or folder where you want to

save the image.

Note

- You can generate an image of the main panel, table data, or charts. The type of image

or device information that you can generate depends on which menu you opened the Start

Snapshot window from. For more information on the file types created in the Start

Snapshot window, see section

5.2.6

Start snapshot

Below is a snapshot from the MIB Variable window, with the main panel and table data both

marked in the Start Snapshot window:
