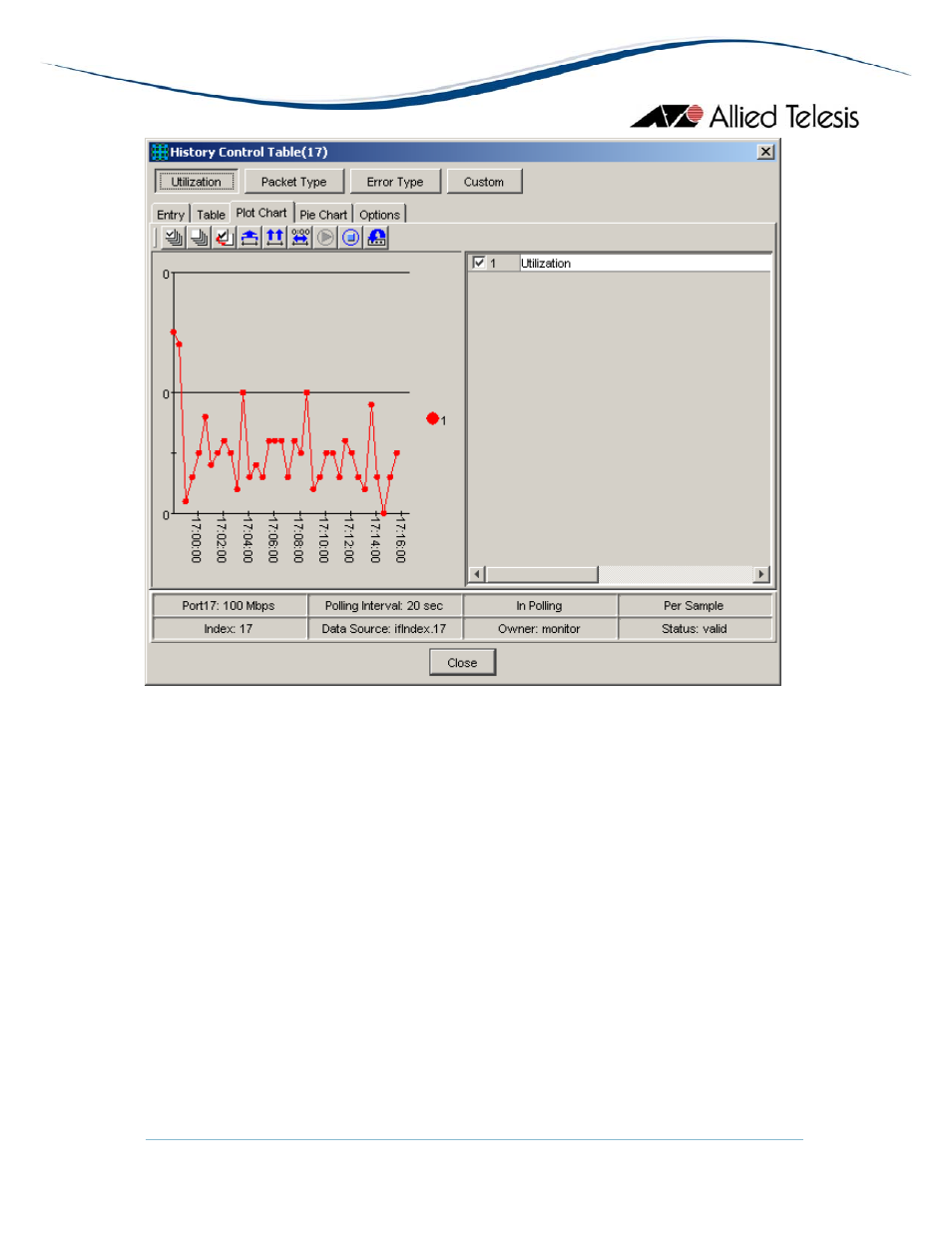

RMON History Plot Chart tab
7.3.5.1 Popup Display
You can see the exact value of a dot by moving the mouse cursor onto the dot. The values
are displayed in the form of "(x, y)". where x indicates the elapsed time (sysUpTime seconds)
and y indicates the value of the data.
Below the graph's horizontal axis, time is displayed. Note that the times shown there are
only a reference point. They are not synchronized with the plotted dots.
7.3.6 Pie Chart Tab
In the Pie Chart tab, network statistics are shown in the pie chart. This chart is useful for
checking the proportions of the various packet counts. The data is updated after each
polling interval.
Note - The pie chart is not displayed when all values are zero.
