Allied Telesis AT-TQ2450 User Manual
Page 45
AT-TQ2450 Wireless Access Point Installation Guide
45
5. Secure the top panel and access point to the bottom panel by
tightening the two captive screws on the top panel. Refer to Figure 23.

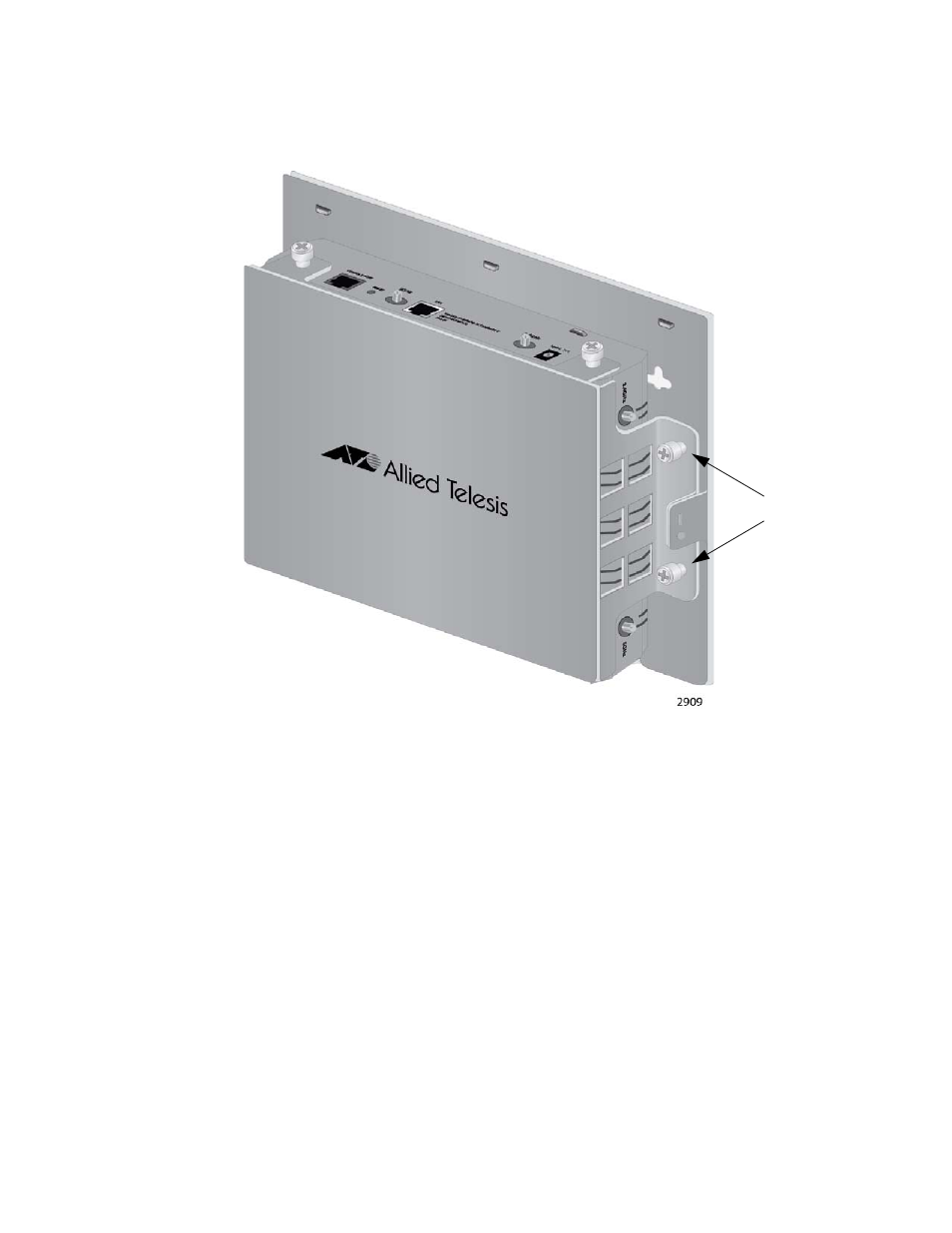

Figure 23. Tightening the Screws to Secure the Top Panel and Access
Port to the Bottom Panel
6. Install the three 2.4 GHz and three 5 GHz antennas to the
corresponding connectors on the sides of the unit. The connectors are
labelled. Refer to Figure 24 on page 46.
Screws
