Allied Telesis AT-TQ2450 User Manual
Page 43
AT-TQ2450 Wireless Access Point Installation Guide
43

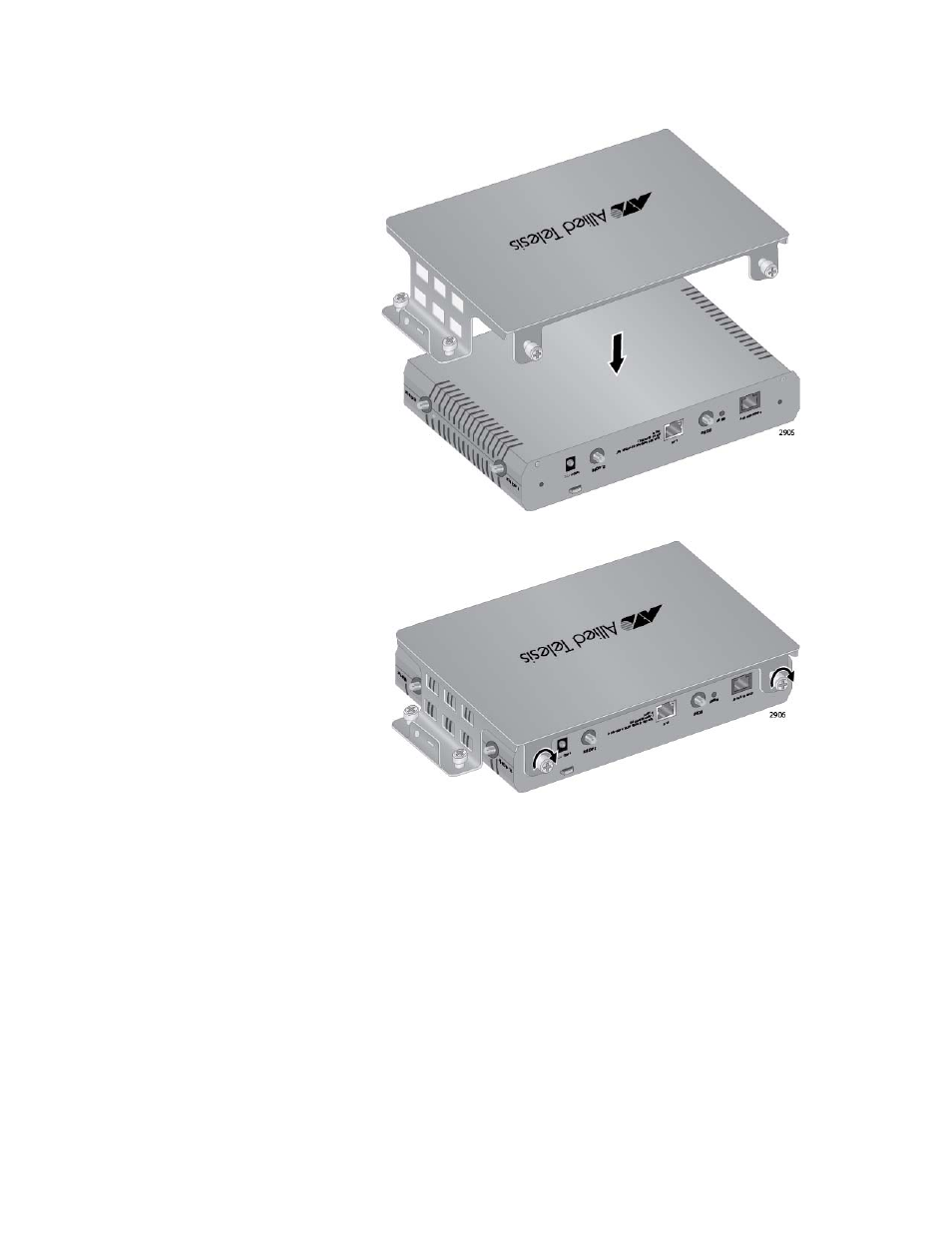

Figure 21. Attaching the Top Panel to the Access Point
4. Place the top panel and access point over the bottom panel on the wall
or ceiling such that the two anchor pins on the bottom panel fit into the
holes on the top panel. Then slide the top panel to lock the pins into
the holes. Refer to Figure 22 on page 44.
