AT-TQ2450 Wireless Access Point Installation Guide
33
Installing the Access Point on a Table
To install the access point on a table, perform the following procedure:
1. Place the access point upside down on a table.
2. Affix the four rubber feet included with the access point to the four
corners of the bottom panel of the unit. Refer to Figure 7.

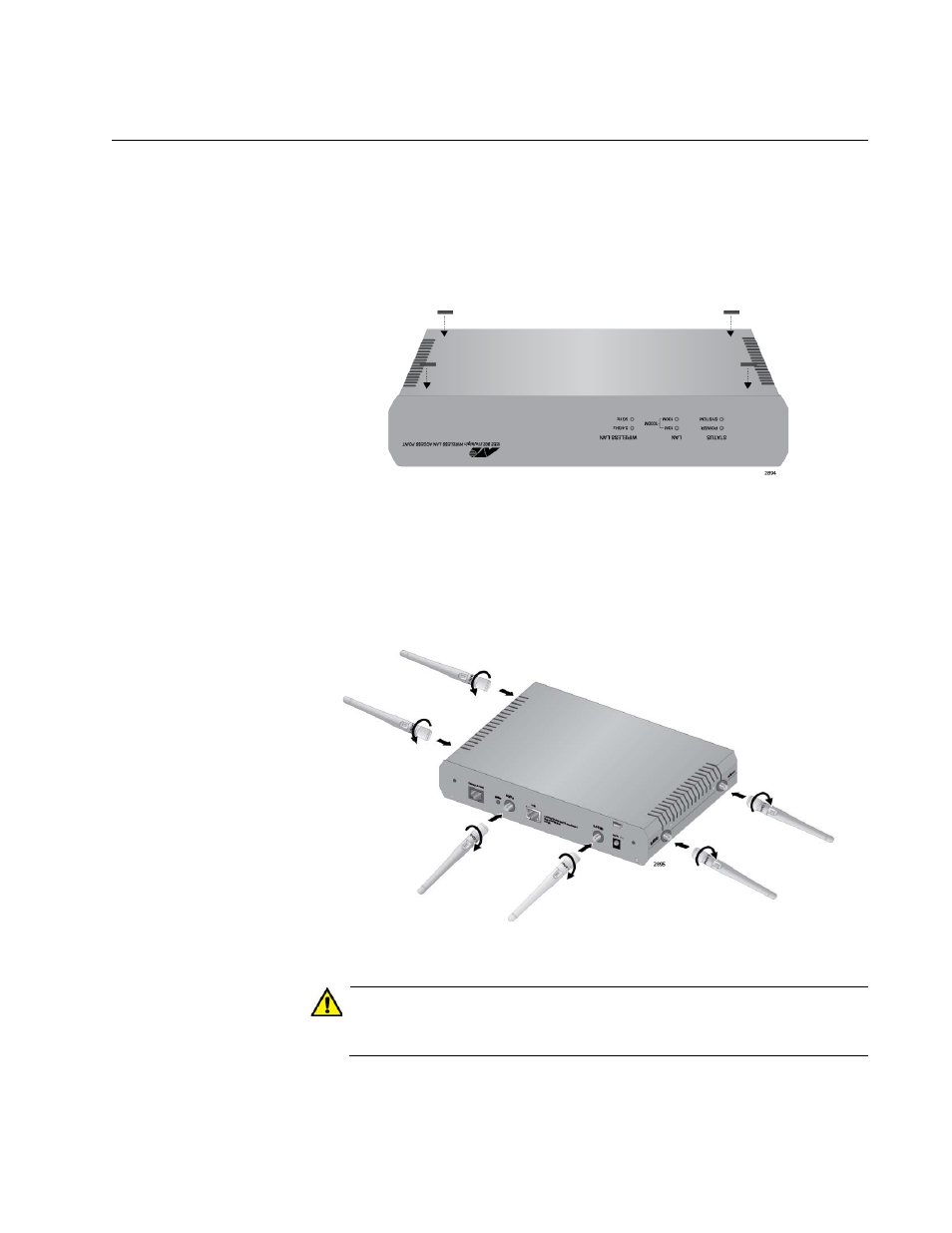

Figure 7. Installing the Rubber Feet
1. Turn the access point right side up on the table.
2. Install the three 2.4 GHz and three 5 GHz antennas to the
corresponding connectors on the sides of the unit. The connectors are
labelled. Refer to Figure 8.
Figure 8. Installing the Antenna
Caution
Do not attach the antennas when the access point is power on
because you might damage the unit.
3. Attach a network cable to the LAN port. Refer to Figure 9 on page 34.
