Figure 11: attaching the dc power cable – Allied Telesis AT-TQ2450 User Manual
Page 35
AT-TQ2450 Wireless Access Point Installation Guide
35
6. Connect the DC cable on the AC/DC adapter to the 12VDC connector
on the access point. Refer to Figure 11 on page 35.

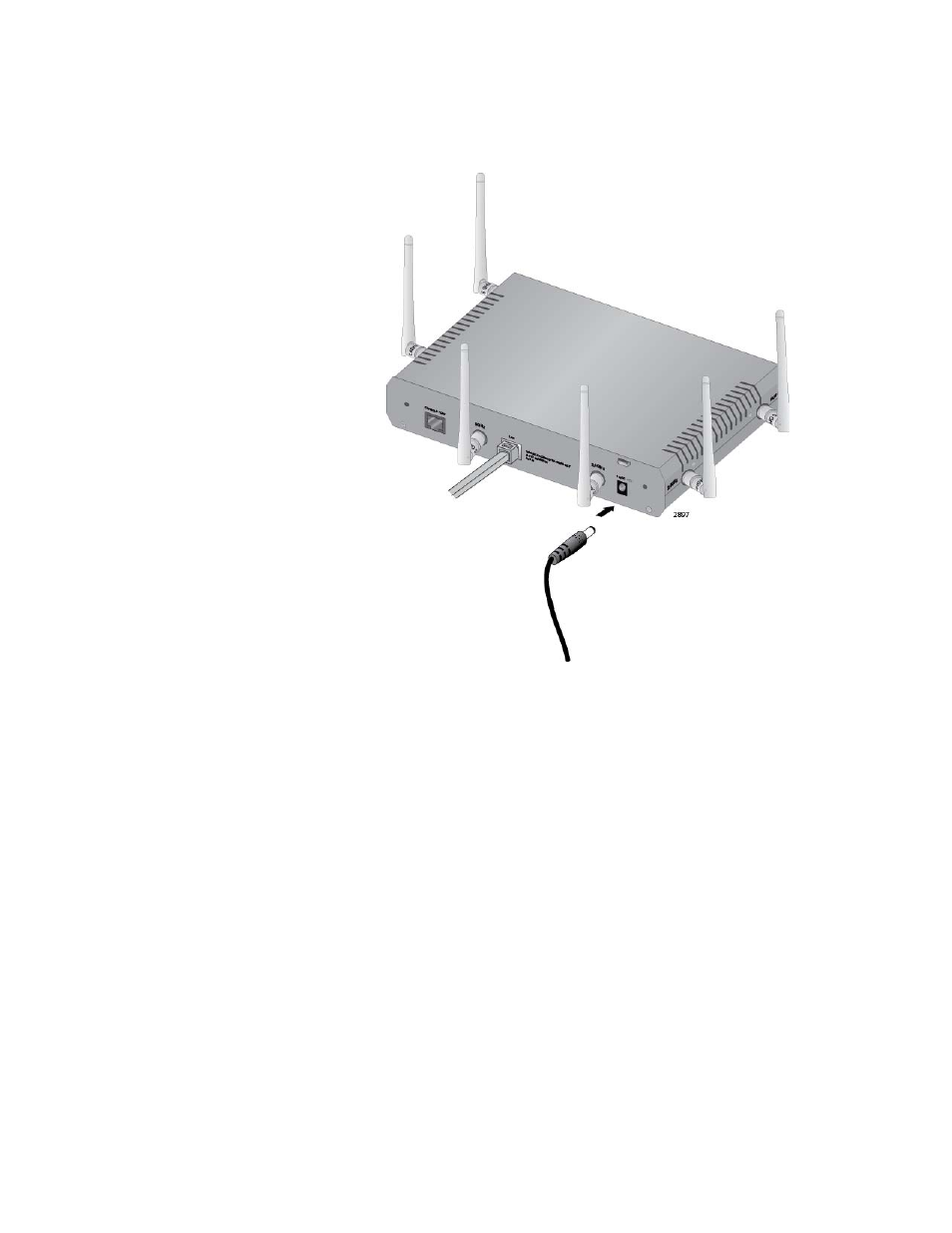

Figure 11. Attaching the DC Power Cable
7. Secure the DC cable to the anchor on the unit with the tie wrap that
comes with the access point. Refer to Figure 12 on page 36.
