MST Settings
You can create, modify and delete MST instance settings with the
procedures in the following sections:
 ”Open MST Settings Page”
 “Specify Region and Revision Level” on page 94
 “Create VLAN Mapping to MST Instance” on page 95
 “Modify MST Instance” on page 95
 “Delete MST Instance” on page 95
Open MST
Settings Page
1. From the main menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select the Spanning Tree folder.
The Spanning Tree folder expands.
3. From the Spanning Tree folder, select MST Settings.
The MST Settings Page is displayed. See Figure 32.

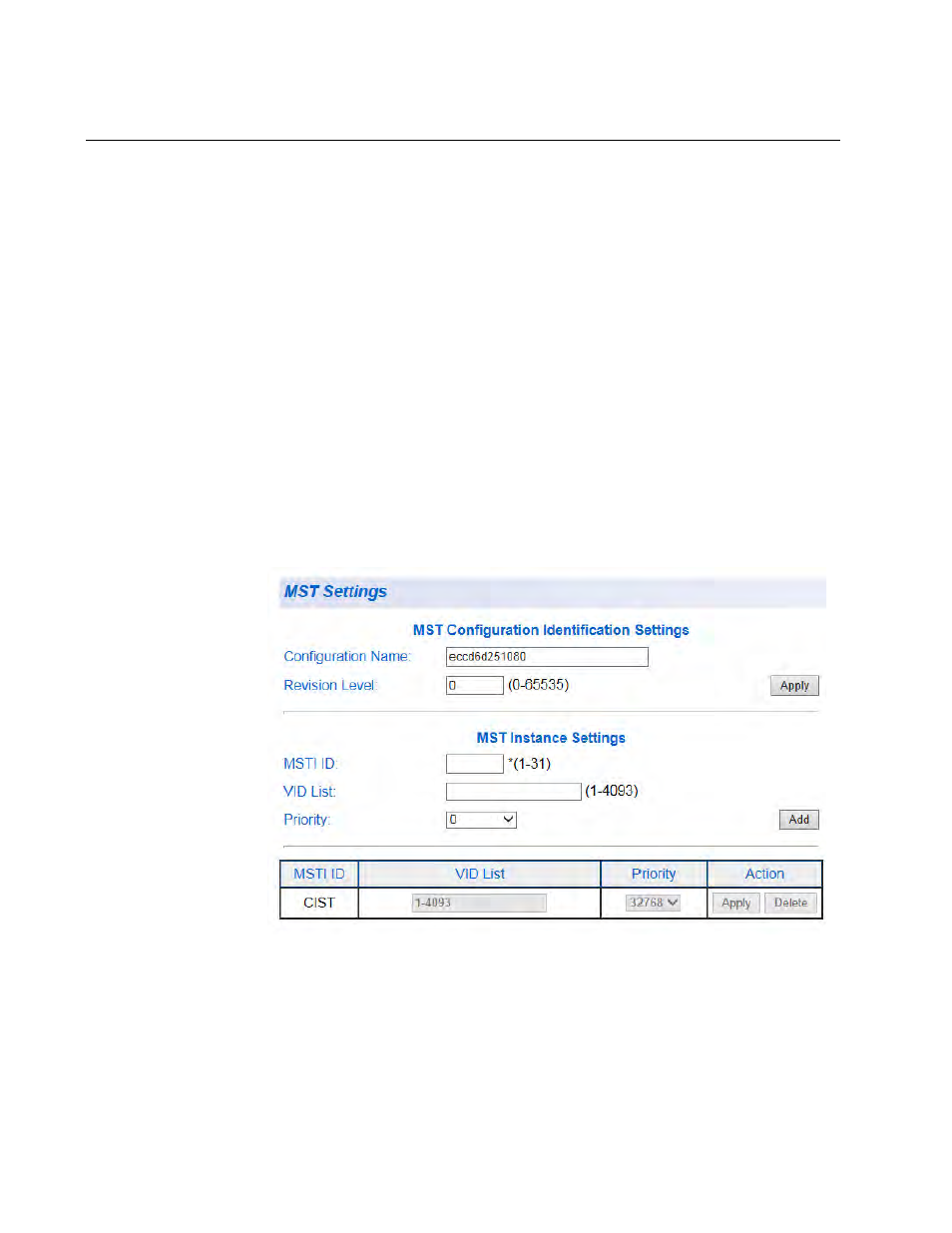

Figure 32. MST Settings Page
Specify Region
and Revision
Level
1. Define the region and revision:
Configuration Name - This parameter specifies the region’s name
where the bridge is a member. This name must be identical to the
regional names specified on other switches in the same MSTP region.
