Multiple vlans assigned to an msti – Allied Telesis AT-GS950/8 User Manual
Page 371
AT-GS950/8 Web Interface User Guide
371

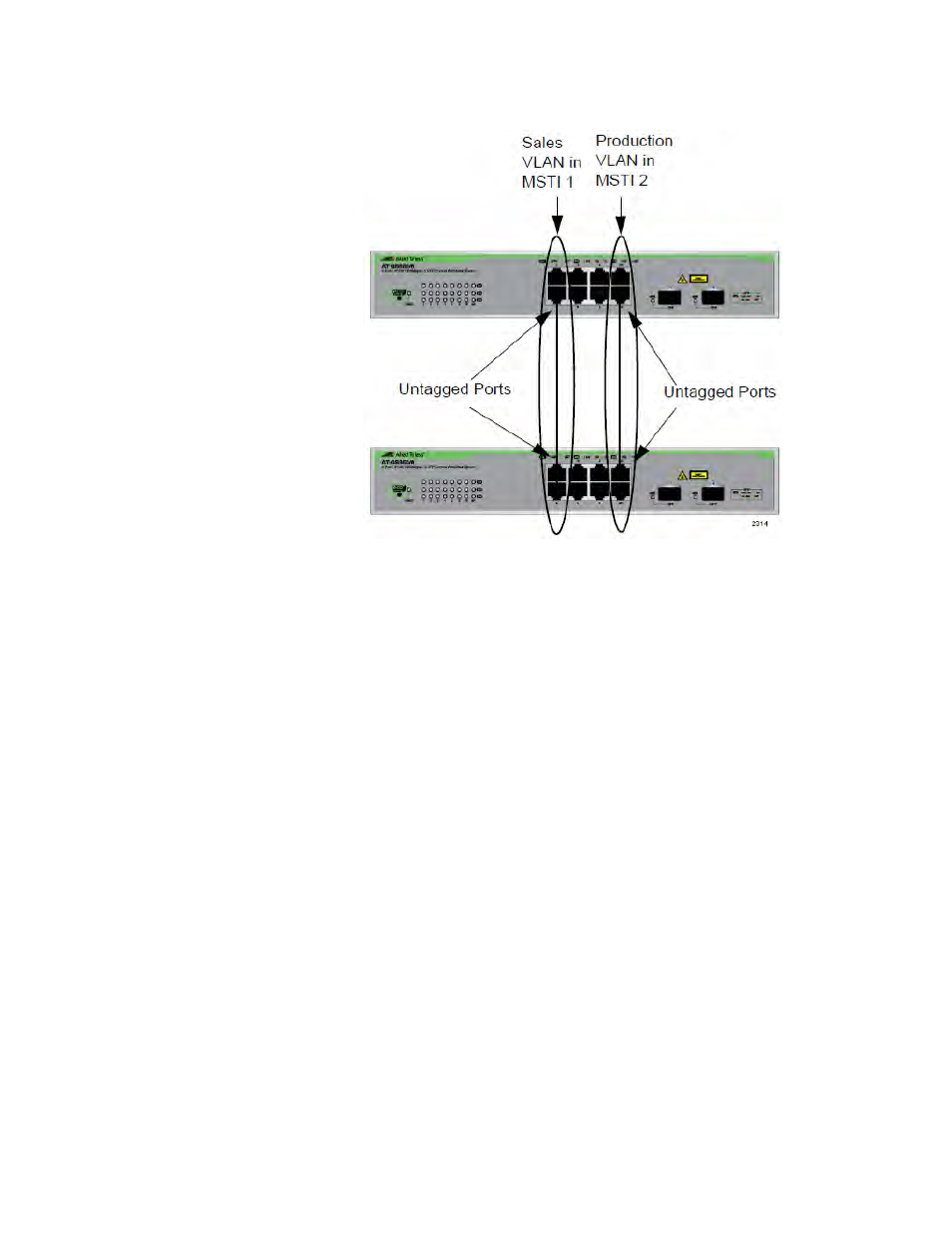

Figure 155. MSTP Example of Two Spanning Tree Instances
Multiple VLANs
Assigned to an
MSTI
An MSTI can contain more than one VLAN. This is illustrated in Figure 156 on
page 372 where there are two AT-GS950/8 switches with four VLANs. There
are two MSTIs, each containing two VLANs. MSTI 1 contains the Sales and
Presales VLANs, and MSTI 2 contains the Design and Engineering VLANs.
