Chapter 7: LACP Port Trunks
116
Configuration
Example
The following procedure provides an example for an LACP group
configuration:
1. Use the procedure given in “Create a Port Trunk” on page 103:
Configure Trunk ID 1 as Active with ports 2, 3, and 4.
The LACP Group Status Page is updated. This configuration is shown
in Figure 38 before the Ethernet cables are connected.

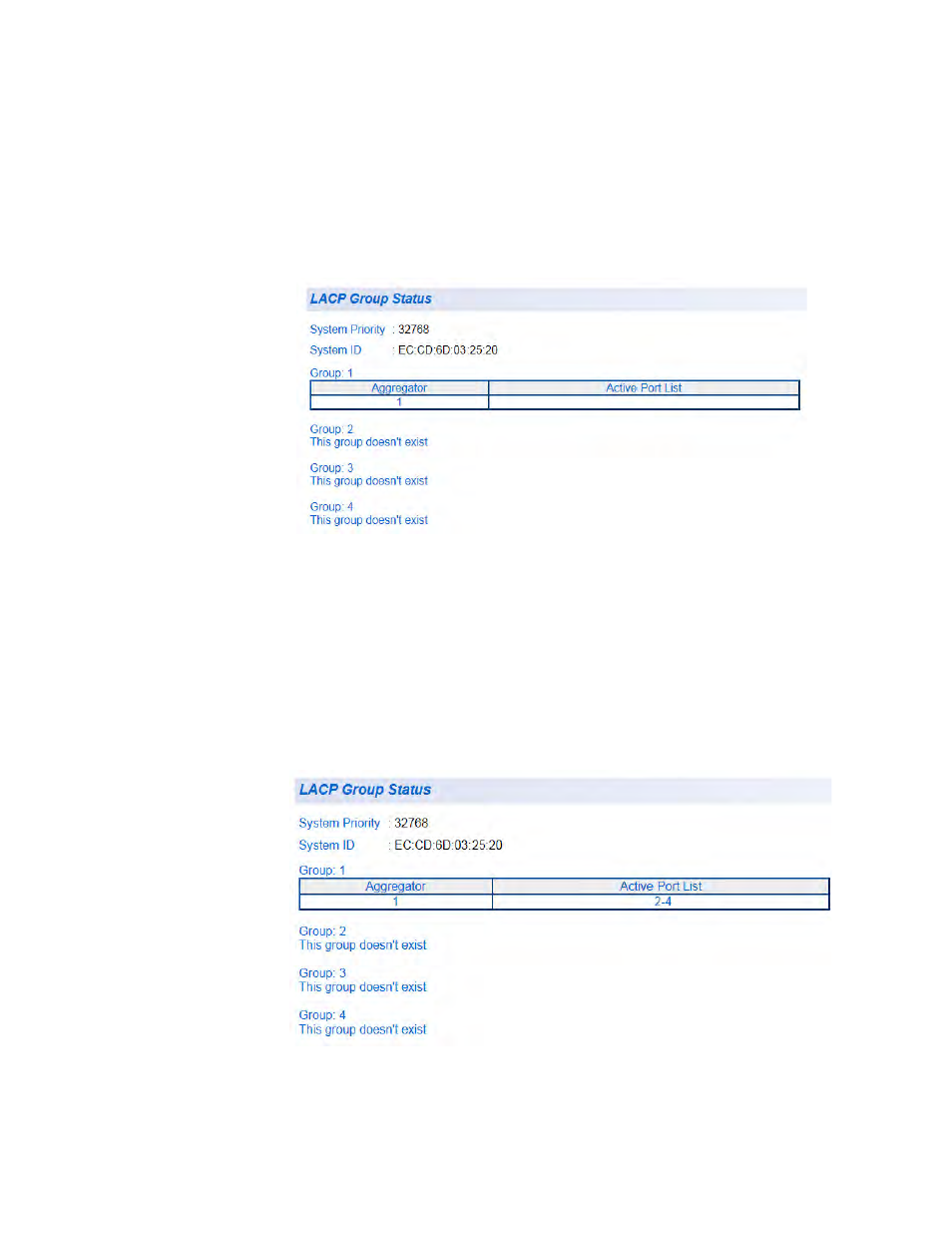

Figure 38. LACP Group Status Page with No Cables Connected
2. Physically connect the network cables between the switch and a
second LACP device.
The second device should be pre-configured with an LACP activated
trunk of three or more ports.
The LACP Group Status Page is updated. An example of these
updates is shown in Figure 39 on page 116 after three trunking cables
are installed and the ports have Link-Up status.
Figure 39. LACP Group Status Page with Three Cables Connected
