Mounting the switch in an equipment rack – Allied Telesis 8100S Series User Manual
Page 75
Stand-alone Switch Installation Guide for 8100L and 8100S Series Switches
75

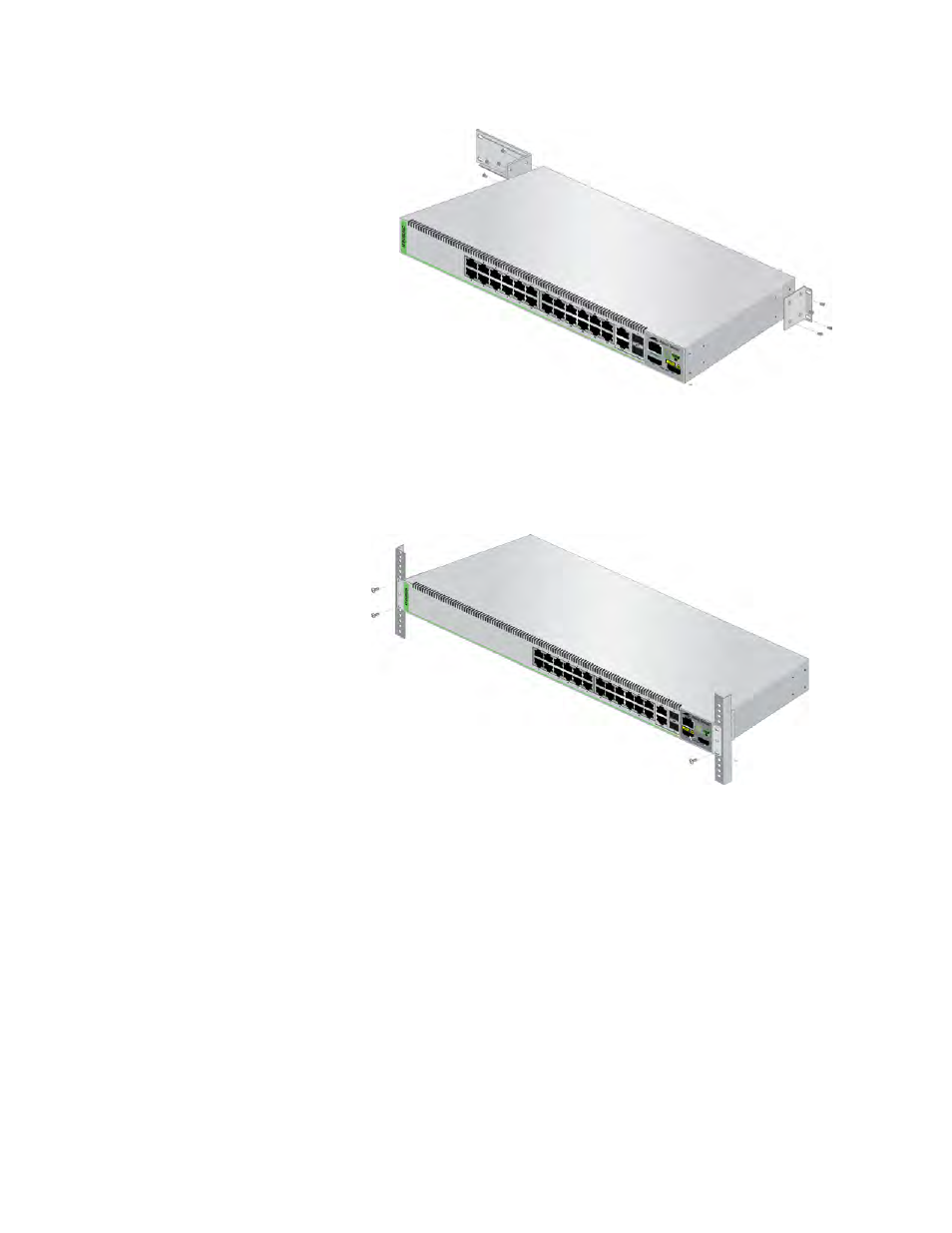

Figure 27. Attaching the Brackets to 8100L and AT-8100S/24C Switches
for Equipment Rack Installation (Continued)
5. While another person holds the switch in the equipment rack, secure it
using standard equipment rack screws (not provided).
Figure 28. Mounting the Switch in an Equipment Rack
Go to Chapter 4, “Cabling the Networking Ports” on page 77 to connect the
network cables to the ports on the switch.
