Front Panels
The front panels of the 8100S Series switches are shown in Figure 3.

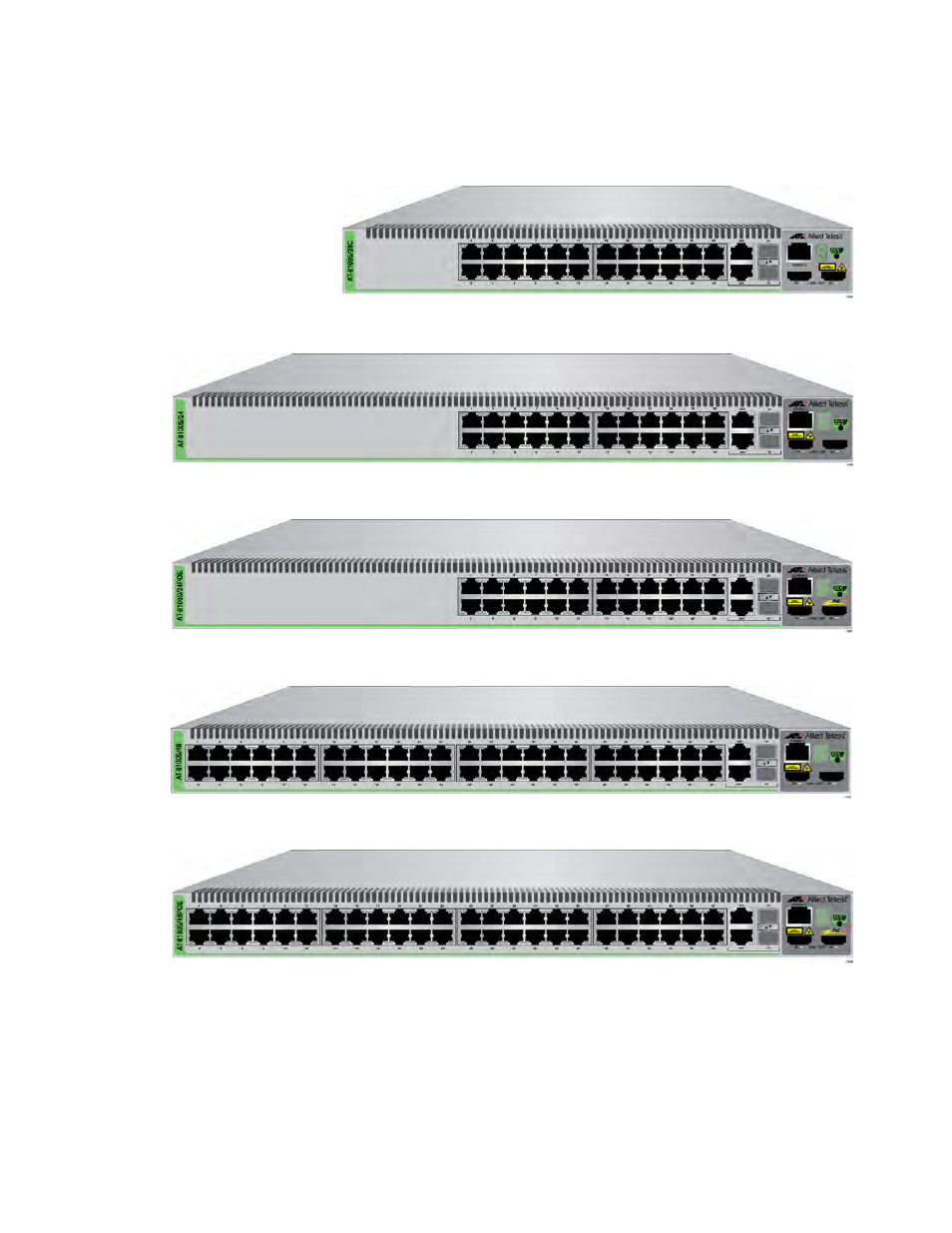

Figure 3. Front Panels of the 8100S Twisted Pair Series Switches
AT-8100S/24
AT-8100S/24POE
AT-8100S/48
AT-8100S/48POE
AT-8100S/24C
