Removing the lcd bezel – Acer 4730 User Manual
Page 99
Chapter 3
89

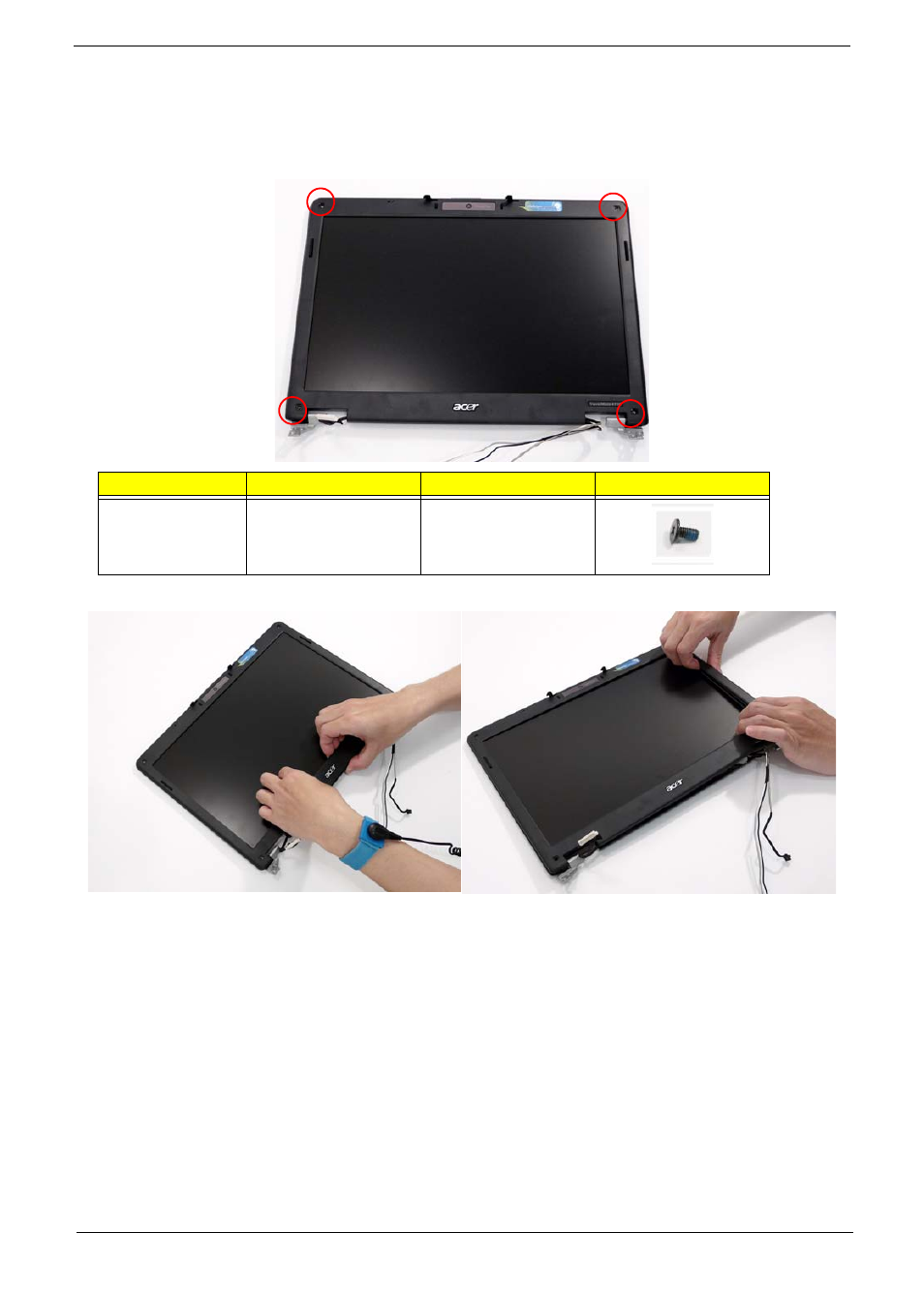

Removing the LCD Bezel
1. Remove the LCD module. See “Removing the LCD Module” on page 65.
2. Remove the two upper and two lower bezel screw caps. Remove the four securing screws from the LCD
module.
3. Lift up the bezel, topside first, and remove it from the LCD Module.
Step
Size
Quantity
Screw Type
LCD Bezel
M2.5*5 (NL)
4
