Chapter 3
Removing the Right Speaker Module

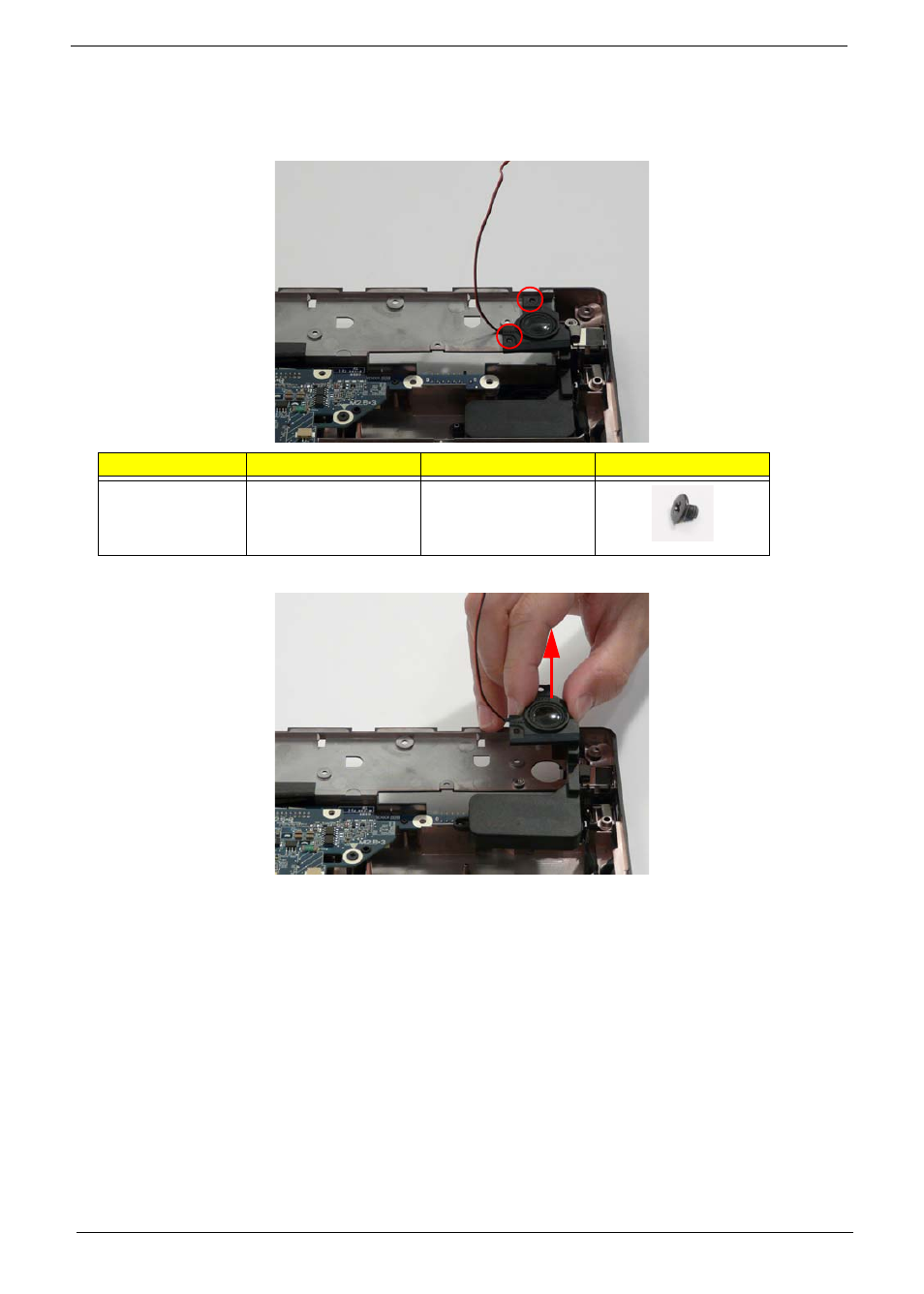

1. See “Removing the Upper Cover” on page 67.
2. Remove the two securing screws from the speaker module.
3. Grip the Speaker Module and remove.
Step
Size
Quantity
Screw Type
Right Speaker
Module
M2.5*3 (NL)
2
