Acer 4730 User Manual
Page 110
100
Chapter 3

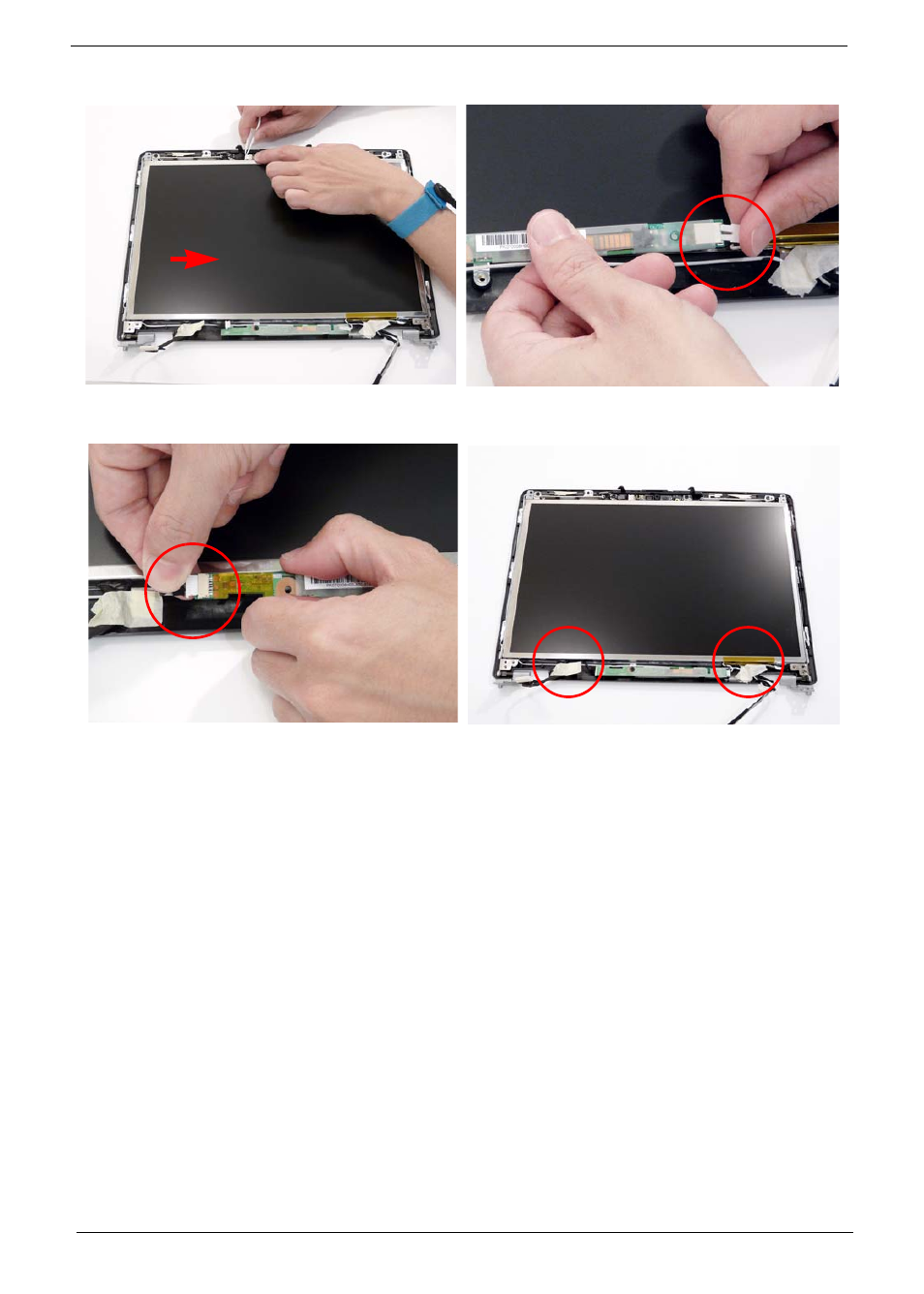

14. Connect the Camera Module cable as shown.
15. Connect the right Inverter board cable as shown.
16. Connect the left Inverter board cable as shown.
17. Replace the adhesive strips on the left and right
sides of the Inverter board as shown
NOTE: Tuck the cables securely to prevent damage to the cables or module.
