Removing the camera module – Acer 4730 User Manual
Page 101
Chapter 3
91
Removing the Camera Module

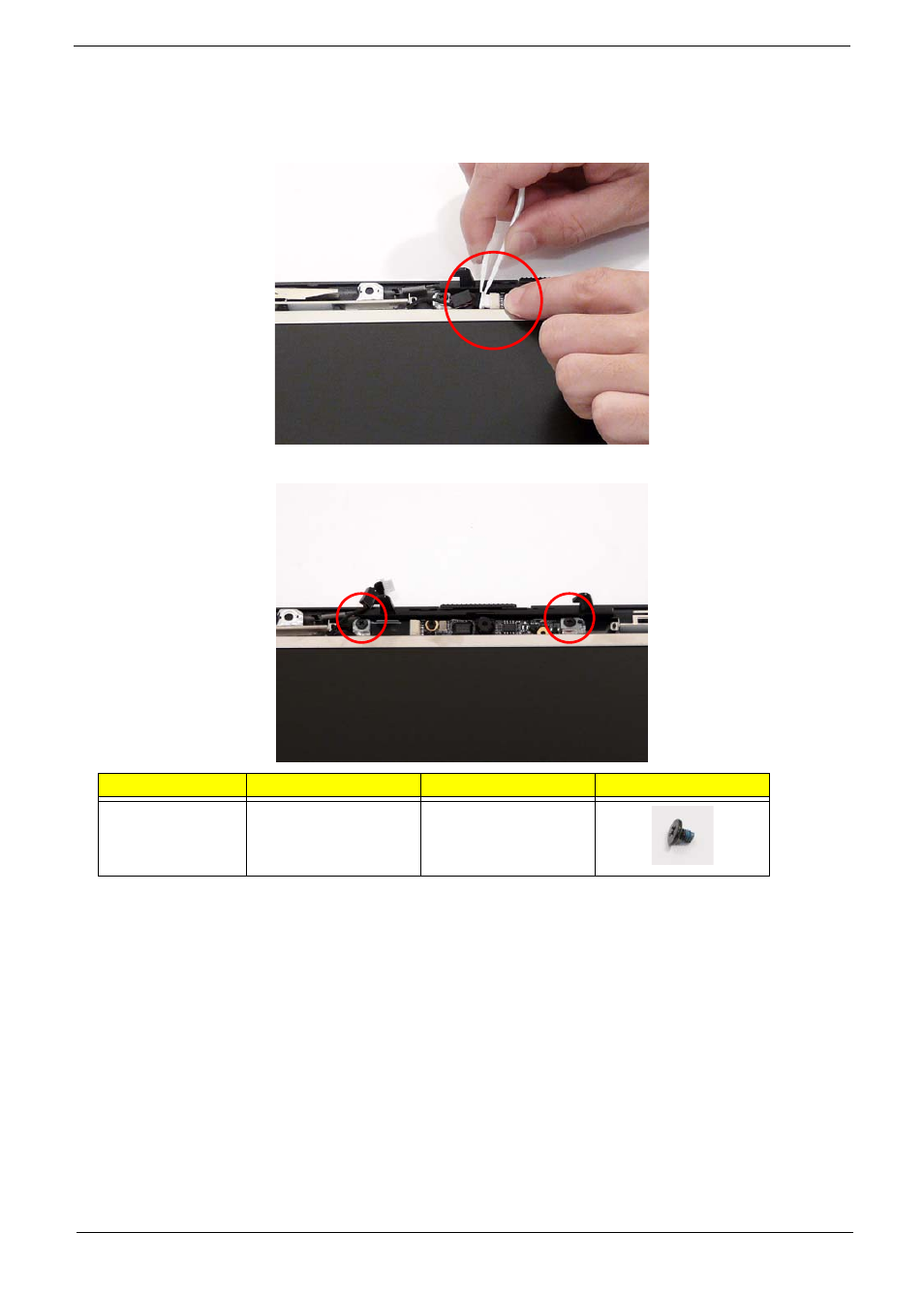

1. Remove the LCD Bezel. See “Removing the LCD Bezel” on page 89.
2. Disconnect the Camera Module cable as shown.
3. Remove the two securing screws from the Camera Module bracket.
Step
Size
Quantity
Screw Type
Camera Module
bracket
M2*3 (NL)
2
