Removing the modem module – Acer 4730 User Manual
Page 88
78
Chapter 3

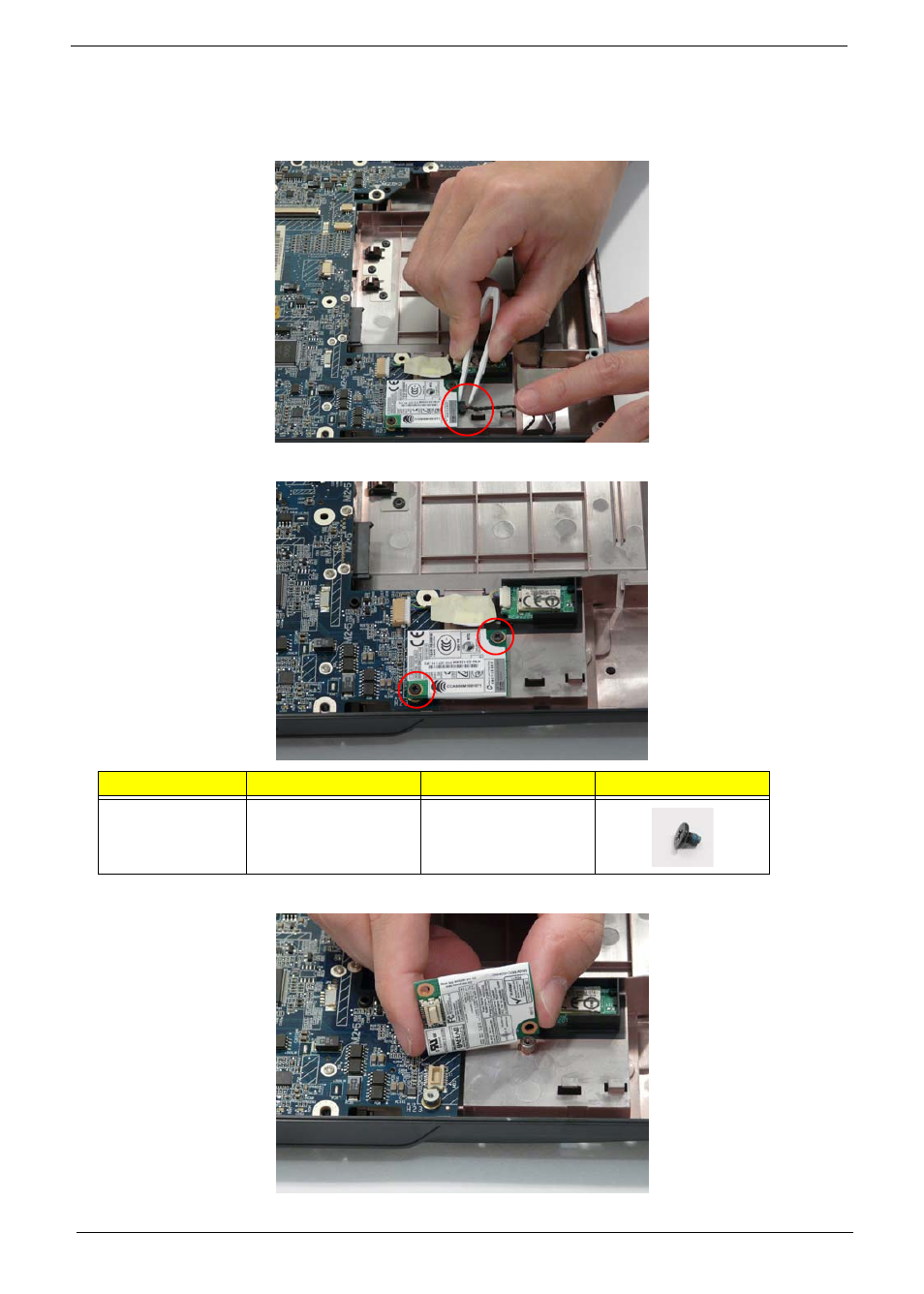

Removing the Modem Module
1. See “Removing the Upper Cover” on page 67.
2. Disconnect the RJ-11 cable as shown.
3. Remove the two (2) securing screws.
4. Lift the module and remove from the lower cover as shown.
Step
Size
Quantity
Screw Type
Modem Module
M2*3 (NL)
2
