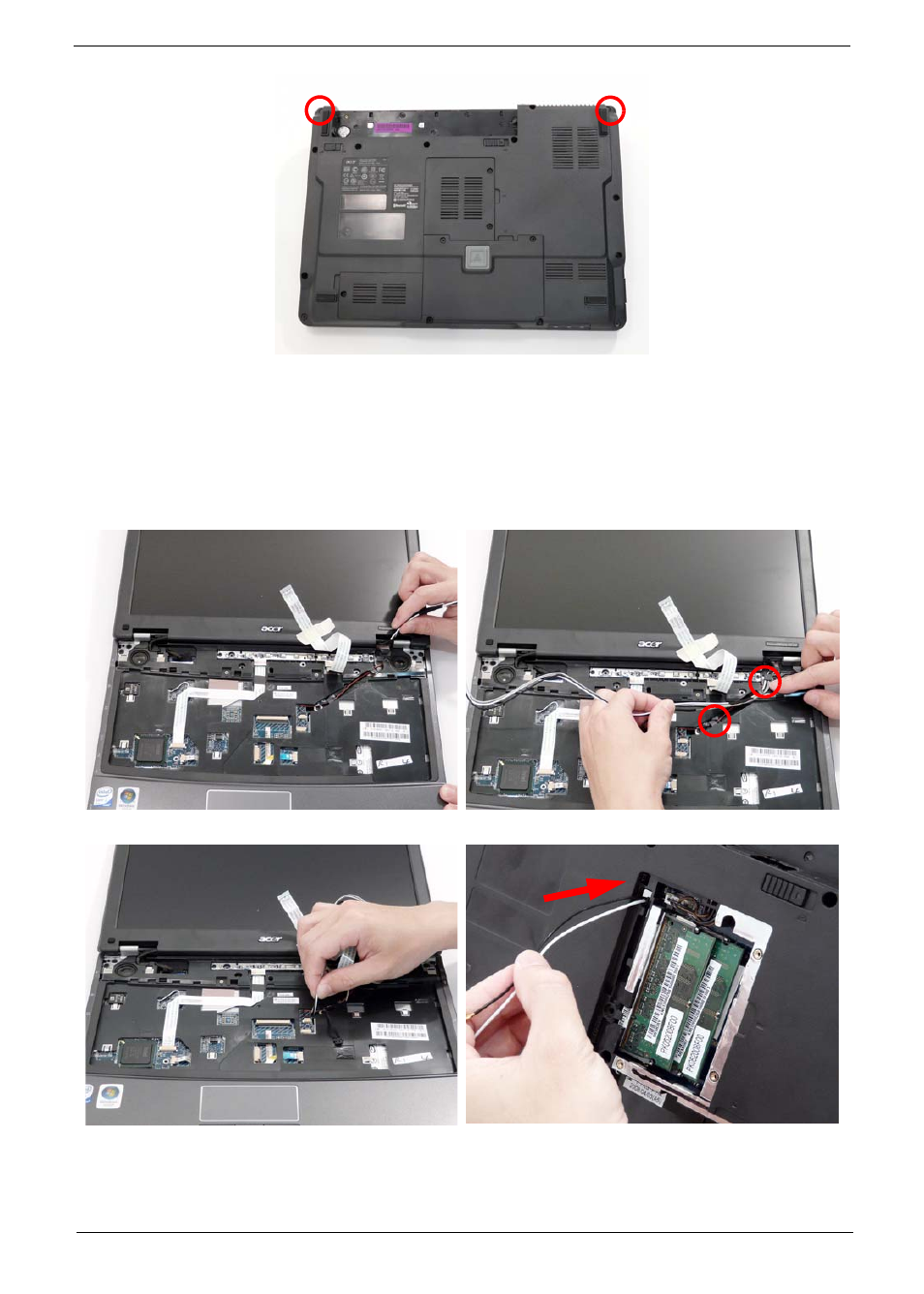

Replacing the Antenna Cables
Ensure that the three Antenna cables pass through the Mainboard and are accessible from
the underside of lower cover.
1. Replace the Antenna cables in the housing well as
shown.
2. Ensure the cables sit under the retaining brackets
in the housing well.
3. Insert the cables through the upper base.
4. Turn the computer over and pull the cable through.
