Replacing the lcd module – Acer 4730 User Manual
Page 123
Chapter 3
113

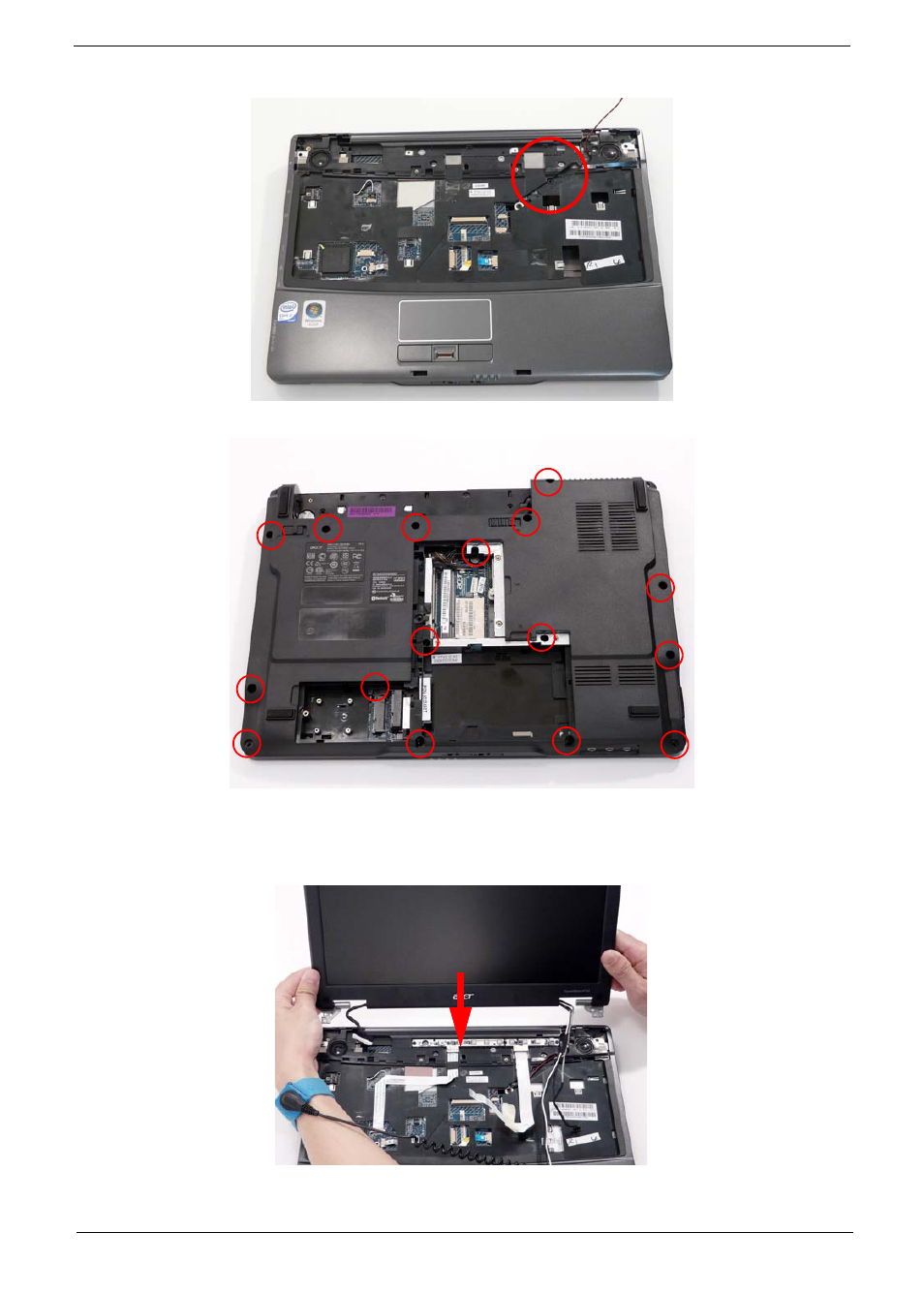

3. Replace the single securing screw on the top panel.
4. Turn the computer over. Replace the sixteen screws on the bottom panel.
Replacing the LCD Module
1. Carefully align the LCD module over the hinge sockets and lower the module into the chassis.
2. Replace the four securing screws (two on each side) securing the LCD module.
