Removing the VGA Module
1. Remove the mainboard. See “Removing the Mainboard” on page 79.

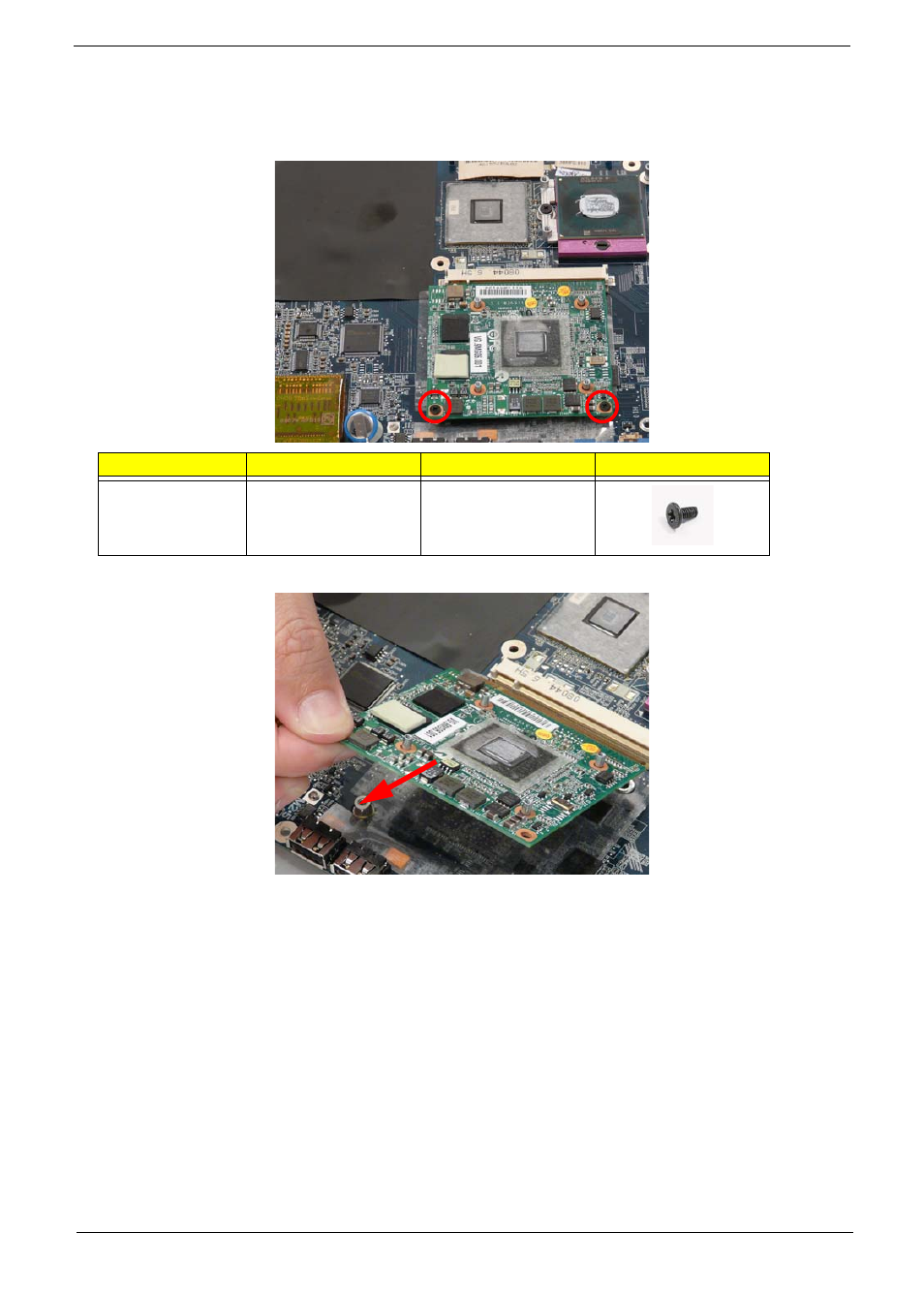

2. Remove the two securing screws from the VGA Module.
3. The VGA module lifts automatically from the mainboard. Remove the VGA Module as shown.
Step
Size
Quantity
Screw Type
VGA Module
M2*4-NI (NL)
2
