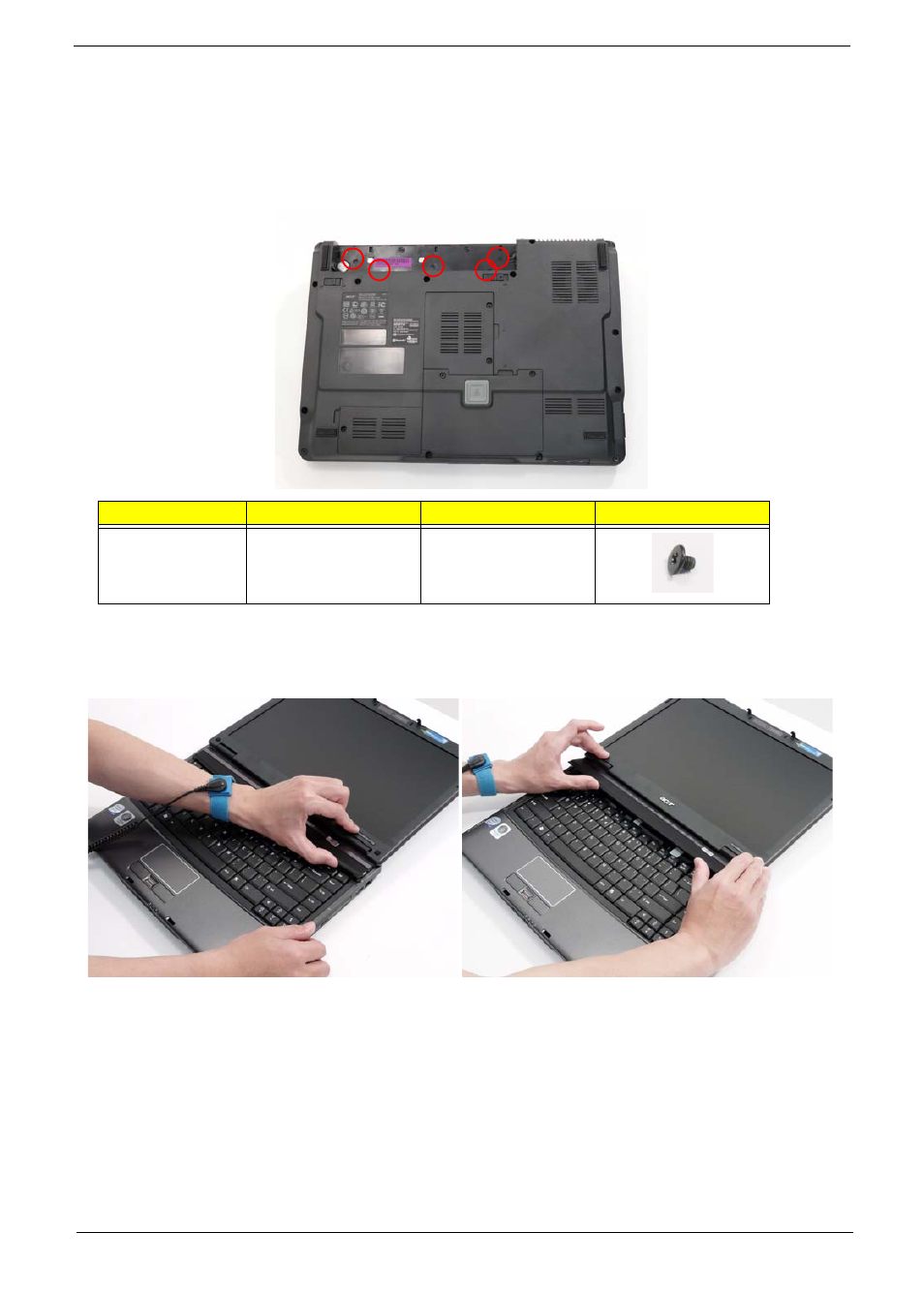

Removing the Switch Cover
CAUTION: Using tools to remove the Switch Cover may cause damage to the outer casing. It is
recommended that only fingers are used to remove the Switch Cover.
1. See “Removing the Battery Pack” on page 46.
2. Locate and remove the five securing screws as shown.
3. Turn the computer over and open the LCD module fully to expose the Switch Cover.
IMPORTANT:The LCD module must be fully open in the horizontal position to remove the switch cover.
4. Lift the Switch Cover as shown, rightside first.
5. Lift the Switch Cover clear of the chassis.
Step Size Quantity Screw Type
Switch Cover M2.5*3 5
