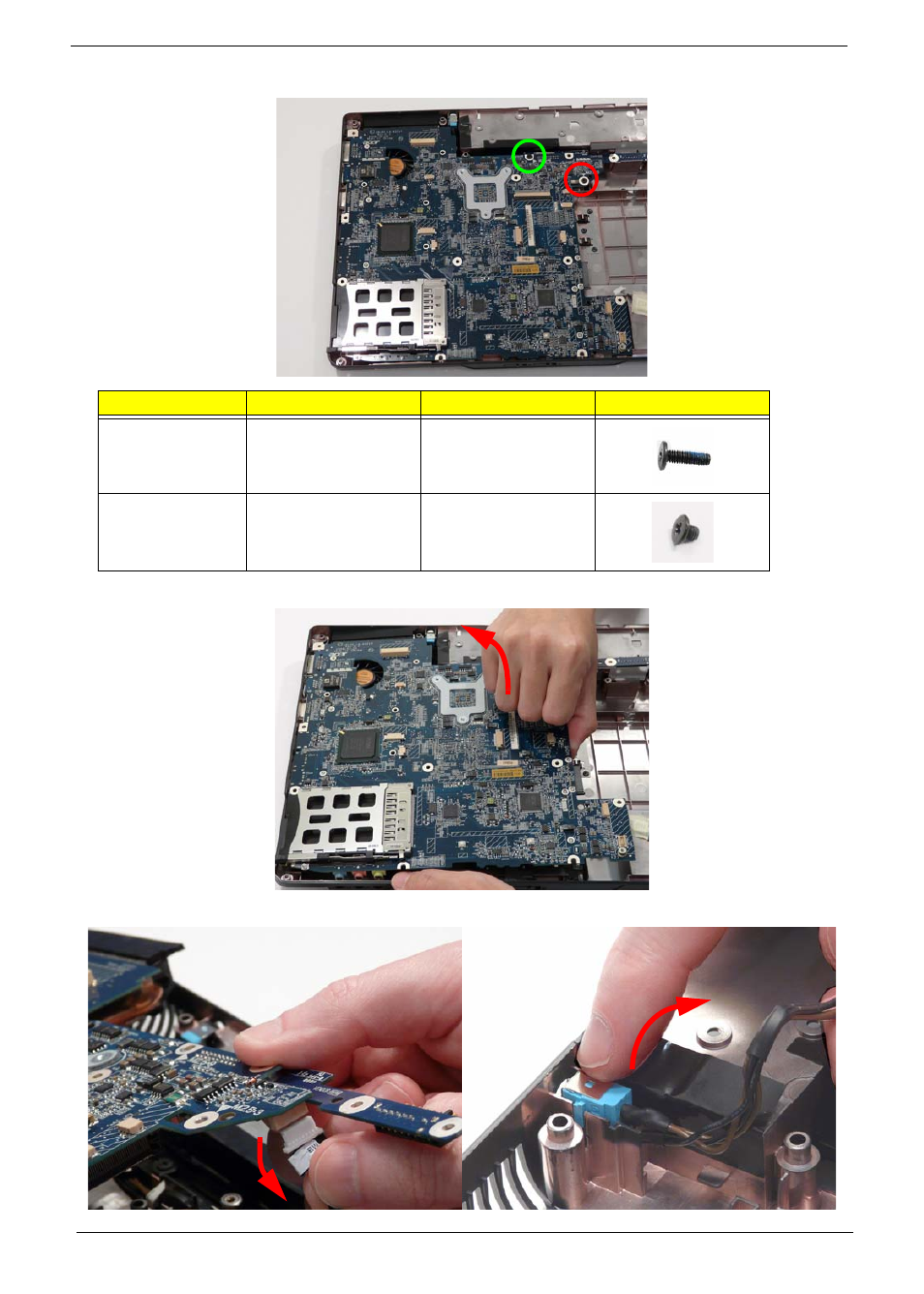

6. Remove the two securing screws from the Mainboard.

7. Lift the mainboard to expose the DC-IN jack and USB cable.

8. Remove the DC-IN jack and USB cable as shown.

Step

Size

Quantity

Screw Type

Mainboard

M2.5*9 (NL)

Green Call out

1

Mainboard

M2.5*3 (NL)

Red Call out

1
