Removing the lcd brackets and fpc cable – Acer 4730 User Manual
Page 104
94
Chapter 3

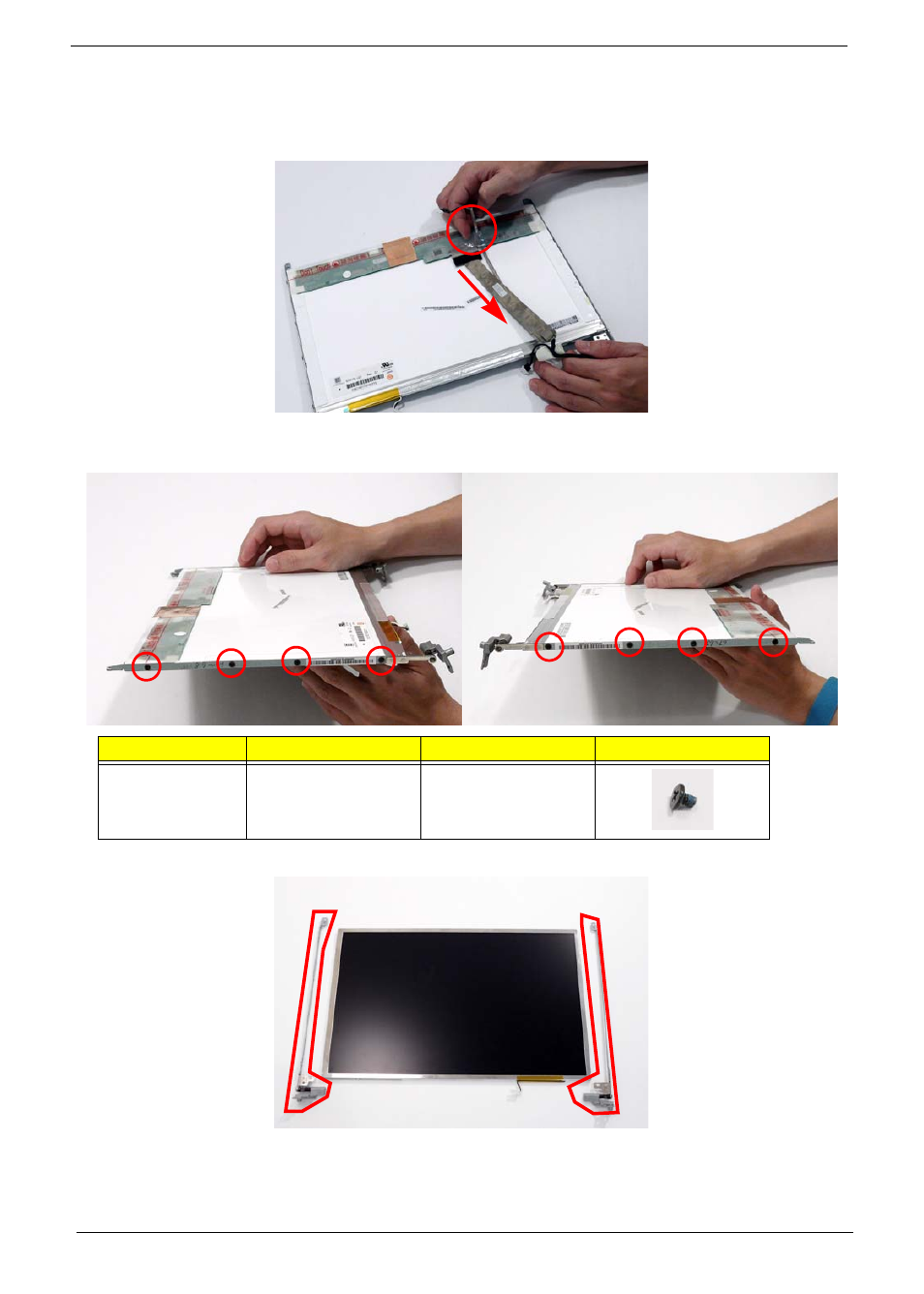

Removing the LCD Brackets and FPC Cable
1. Remove the LCD panel. See “Removing the LCD Panel” on page 93.
2. Turn the LCD panel over to expose the rear. Peel off the mylar strip and remove the FPC cable.
3. Grip the FPC cable and lift upward to detach the adhesive pads.
4. Remove the eight securing screws (four on each side) from the LCD Panel brackets.
5. Remove the LCD brackets by pulling them away from the LCD Panel.
Step
Size
Quantity
Screw Type
LCD Brackets
M2*3 NL
8
