Replacing the mainboard – Acer 4730 User Manual
Page 115
Chapter 3
105

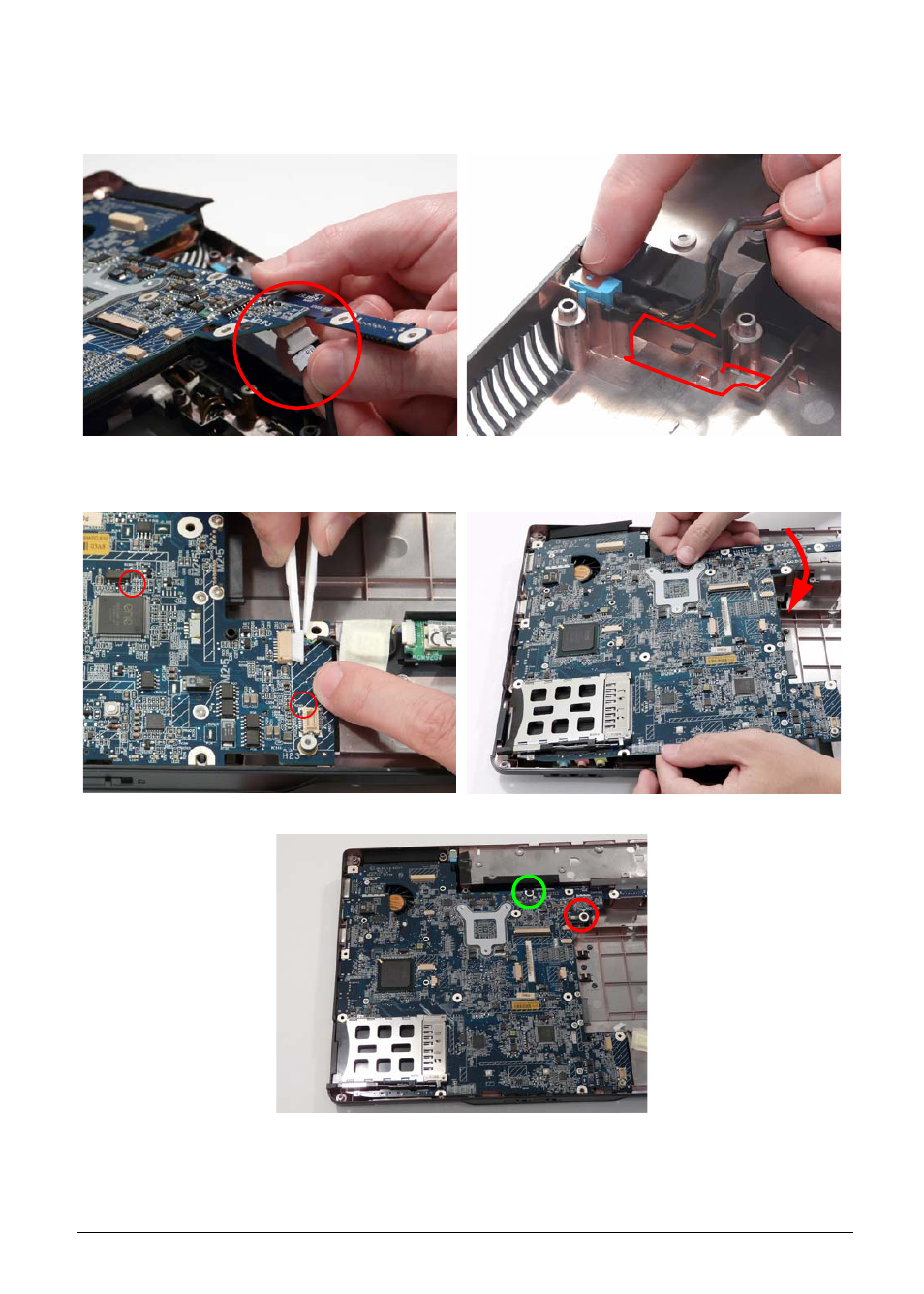

Replacing the Mainboard
1. Replace the USB cable under the mainboard as
shown.
2. Replace the power jack in the Lower Cover and
secure by pressing the cable in the housing well.
3. Replace the Bluetooth connector as shown.
4. Ensure that the Mainboard is face up. Place the
Mainboard in the chassis, rear edge first, and press
down to install.
5. Ensure the screw sockets are aligned. Replace the two securing screws as shown.
NOTE: Make sure the I/O ports are positioned correctly through the lower cover, and the screw sockets are
visible through the mainboard.
