Removing the touch pad bracket – Acer 4730 User Manual
Page 83
Chapter 3
73

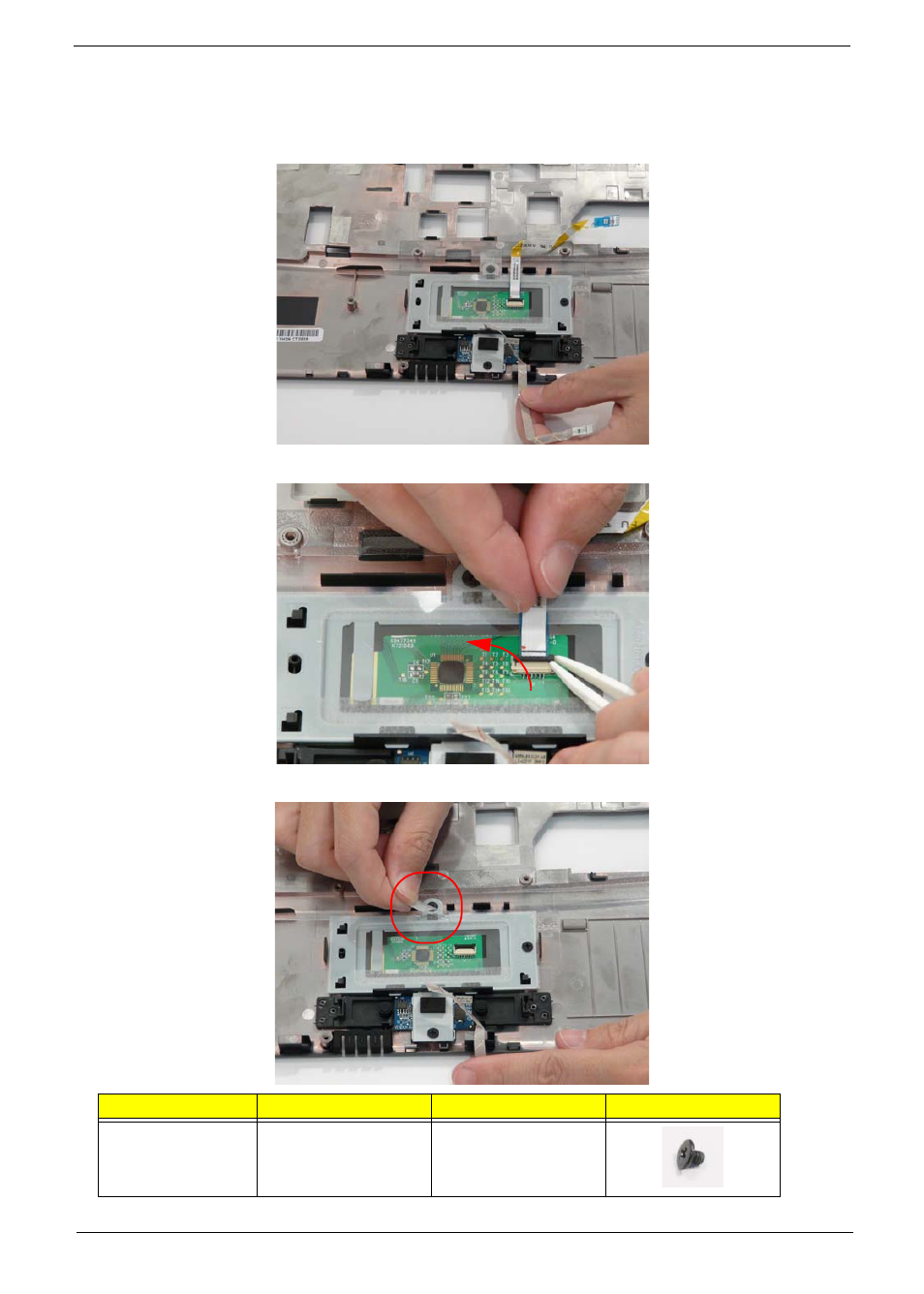

Removing the Touch Pad Bracket
1. See “Removing the Upper Cover” on page 67.
2. Peel back the Finger Print Reader FFC to expose the Touch Pad connector.
3. Disconnect the Touch Pad FFC from the Touch Pad board.
4. Lift up the covering and remove the securing screw.
Step
Size
Quantity
Screw Type
Touch Pad Bracket
M2.5*3 (NL)
2
