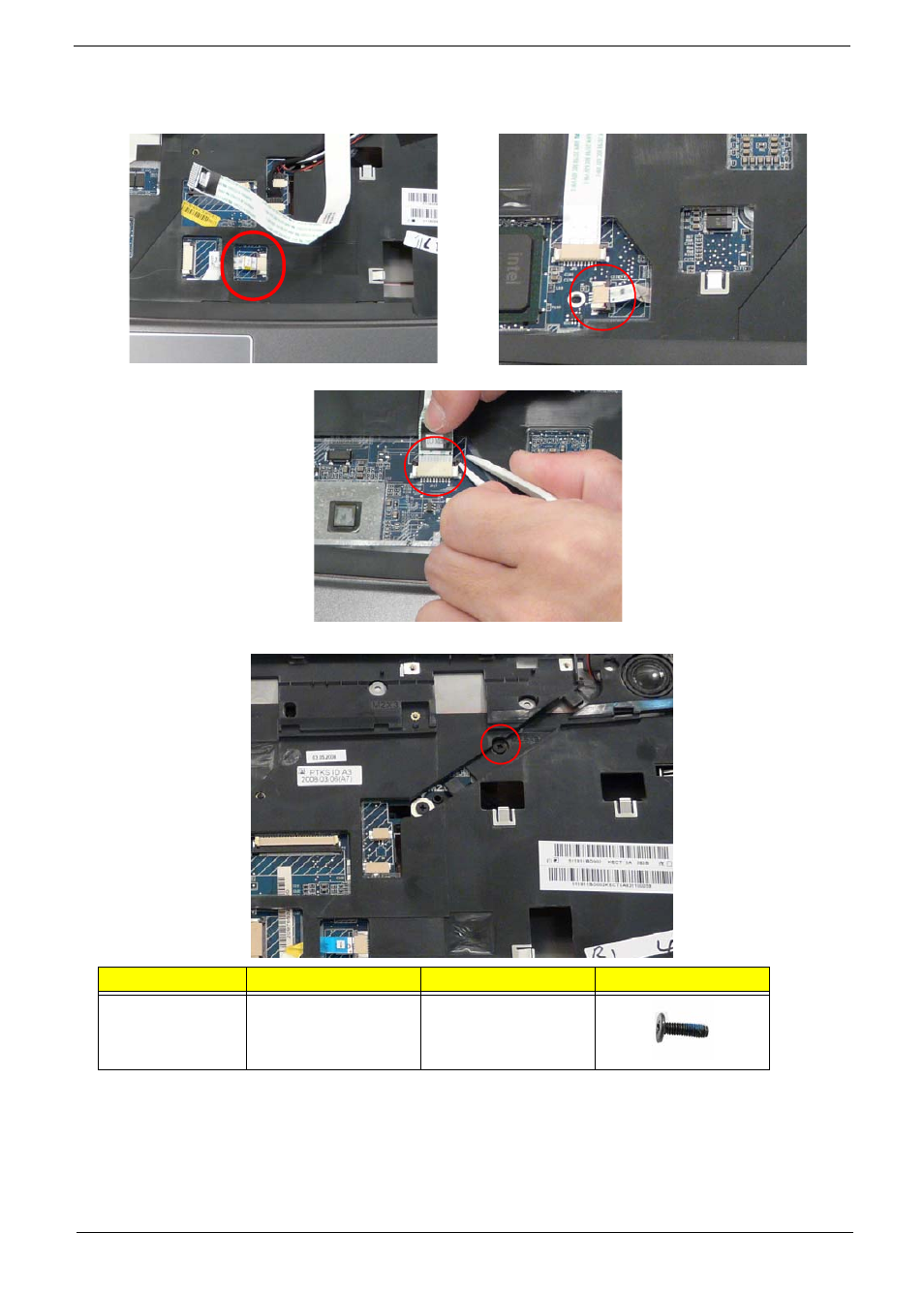

5. Remove the single screw on the top panel.
Disconnect the Power Board FFC (E) first before
removing FFC D. Pull back the locking latches to
release D.
Release the securing latches and disconnect F as
shown.
Release the securing latches and disconnect G as shown.
Step
Size
Quantity
Screw Type
Upper Cover
M2.5*9 (NL)
1
