Acer 4730 User Manual
Page 109
Chapter 3
99

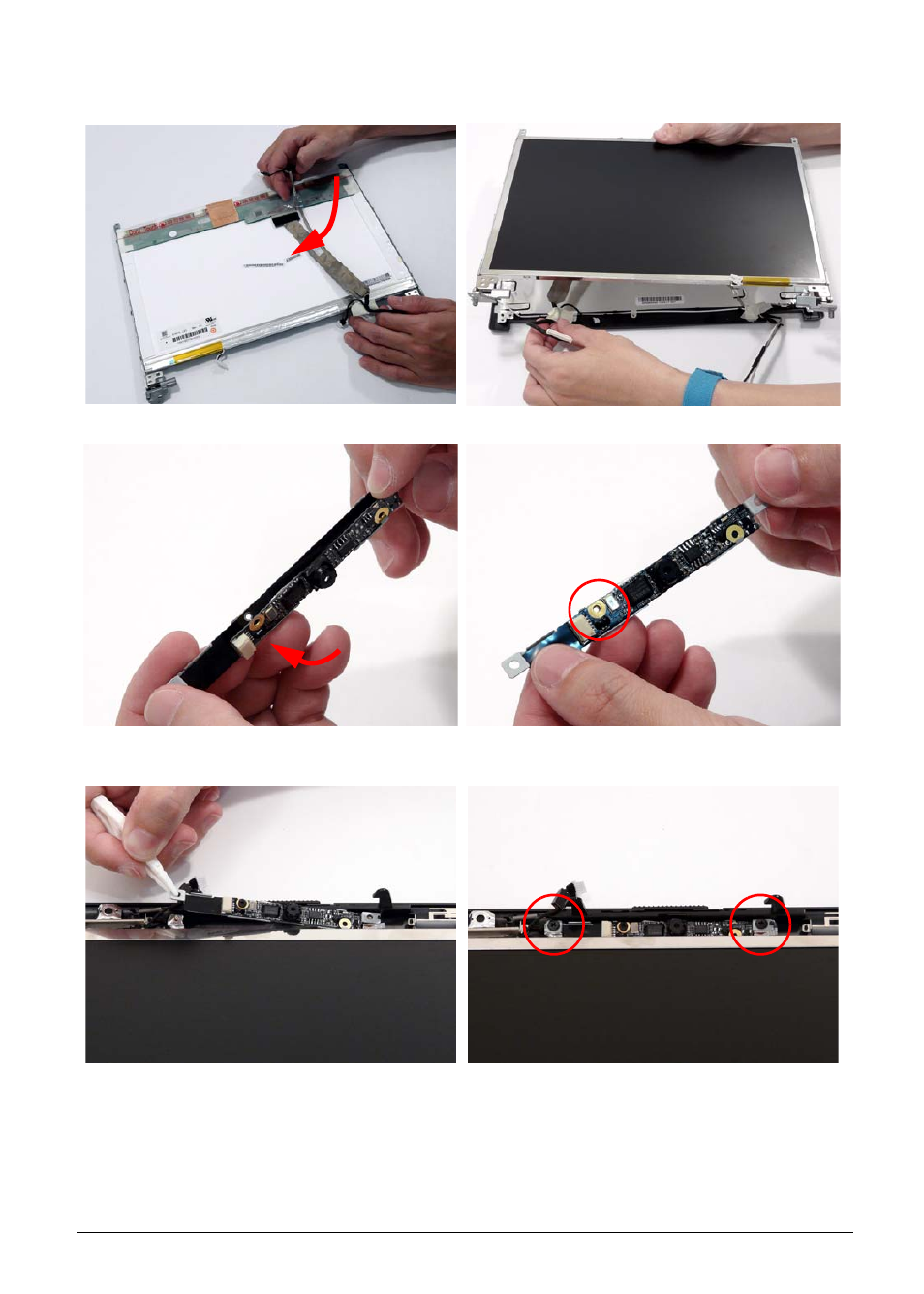

8. Secure the cable by pressing down on the securing
strip.
9. Align the hinges with the LCD back cover and
replace the LCD panel.
10. Replace the camera board in the bracket.
11. Replace the securing screw on the camera board.
12. Replace the Camera Module in the bottom cover.
13. Replace the two securing screws on the Camera
Module bracket as shown.
