PAGE 4
10 NOV 2006
MAN0372-06
DQM306/406
Information is subject to change without notice. SmartStack is a trademark of Horner APG, LLC.

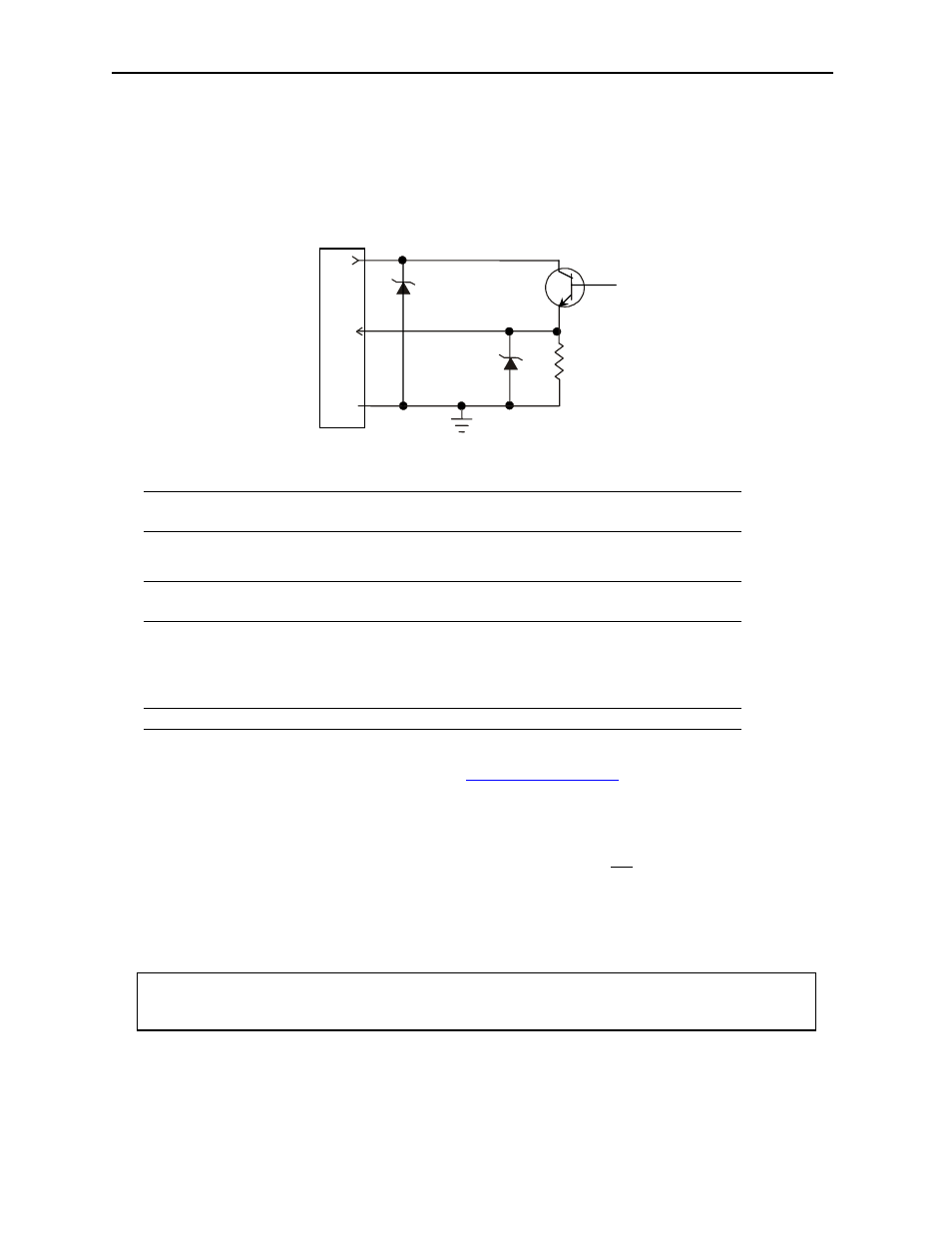

3 INTERNAL
WIRING
Note 1: Specification for transient voltage suppressors (transorbs) used on output
circuitry is 36 V, 300 W.
Note 2: Specification for transient voltage suppressors (transorbs) used on output
circuitry is 33 V, 300 W.
4 CONFIGURATION
Note: The status of the I/O can be monitored in Cscape Software.
Preliminary configuration procedures that apply to SmartStack™ Modules are contained in the hardware
manual of the controller you are using. Refer to the
Additional References
section in this data sheet for a
listing of hardware manuals.
Selecting the I/O Map tab provides information about the I/O registers, which are assigned to a specific
SmartStack™ Module and where the module is located in the point map. The I/O Map is determined by
the model number and location within the SmartStack™. The I/O Map is not edited by the user.
The Module Setup is used in applications where it is necessary to change the default states of the
outputs when the controller (e.g., OCS100) enters idle/stop mode. The default turns the outputs OFF
when the controller enters idle/stop mode. By selecting the Module Setup tab, each output can be set to
either turn ON, turn OFF or to hold the last state. Generally, most applications use the default settings.
Warning: The default turns the outputs OFF when the controller enters idle/stop mode. To
avoid injury of personnel or damages to equipment, exercise extreme caution when changing
the default setting using the Module Setup tab.
From
Controller
V+
Q
C
I/O Connector
Field
Side
SmartStack
See
Note 1
See
Note 2
