MAN0372-06

10 NOV 2006

PAGE 3

DQM306/406

Information is subject to change without notice. SmartStack is a trademark of Horner APG, LLC.

2.2

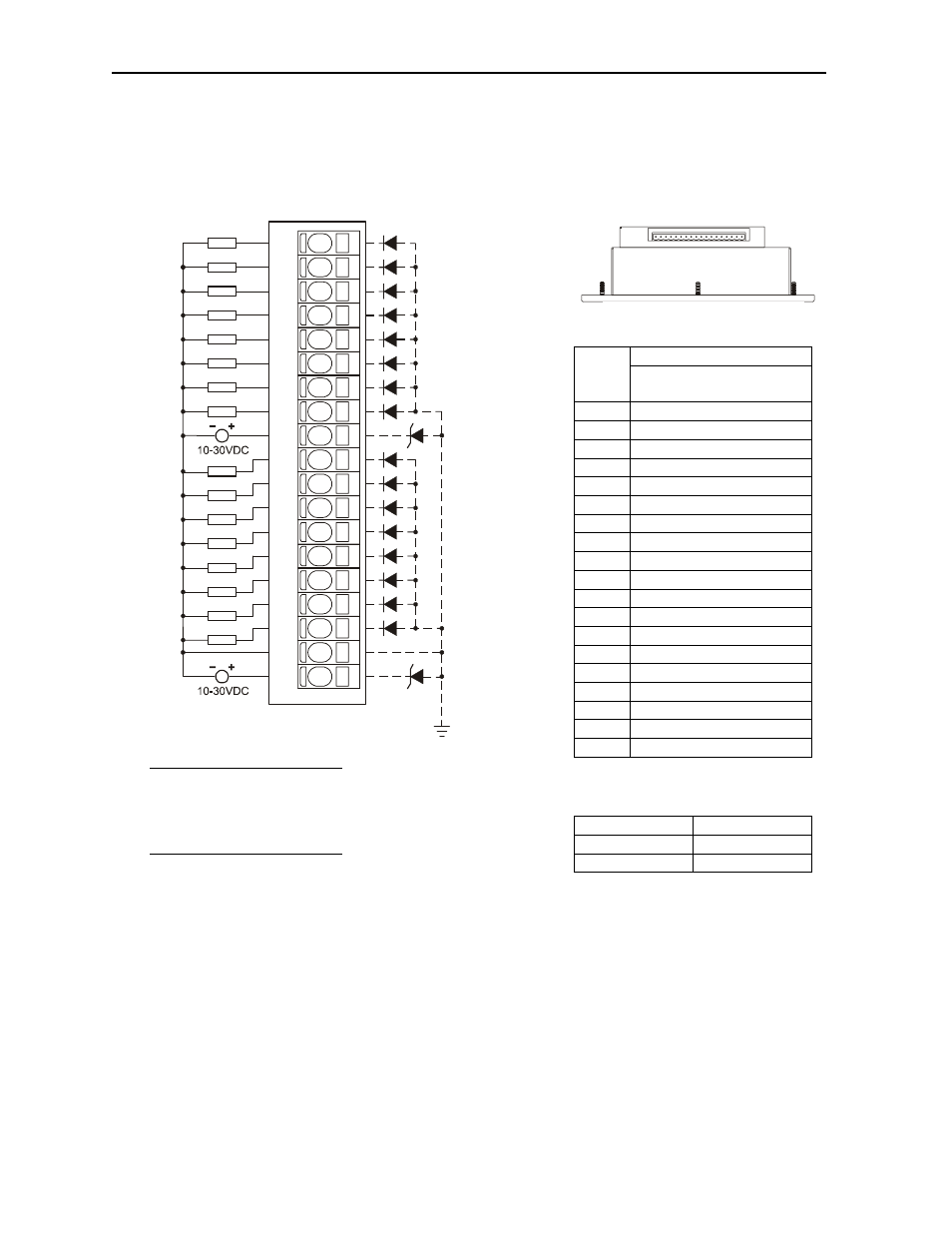

Top Connector (Used by DQM406 only)

OCS Top View – Shows

Corresponding I/O Pin

*

Signal

Pin

DQM406

OUTPUT

Q17 Output

17

Q18 Output

18

Q19 Output

19

Q20 Output

20

Q21 Output

21

Q22 Output

22

Q23 Output

23

Q24 Output

24

V3

Load Power 3

Q25 Output

25

Q26 Output

26

Q27 Output

27

Q28 Output

28

Q29 Output

29

Q30 Output

30

Q31 Output

31

Q32 Output

32

C2

Common 1

V4

Load Power 4

Load Power

Outputs

3 17-24
4 25-32

Q17

Q18

Q19

Q20

Q25

Q26

Q27

Q28

Q21

Q22

Q23

Q24

Q29

Q30

Q31

Q32

V3

C2

V4

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

LOAD

+

-

001DQM003

*

Note: For Class I, Div. 2
operation, V1, V2, V3, and
V4 must share the same
power supply.
