Horner APG SmartStack I/O HE-DIQ716 - Manual (Page 2)

PAGE 2 10 NOV 2006 MAN0268-09
DIQ716
Information is subject to change without notice. SmartStack is a trademark of Horner APG, LLC.
2 WIRING

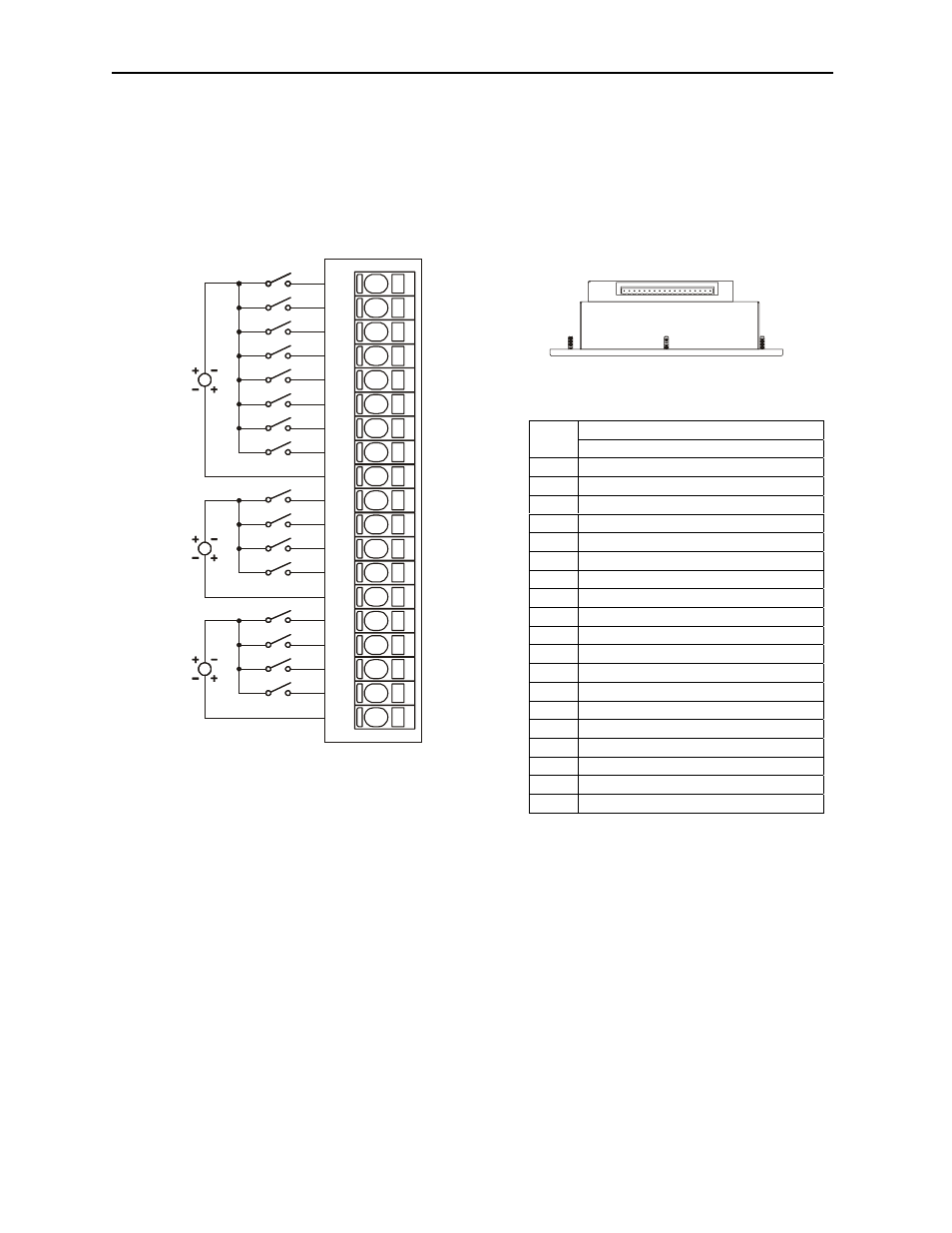

2.1 Input Wiring
Signal
Pin
DIQ716 INPUT
I1 Input 1
I2 Input 2
I3 Input 3
I4 Input 4
I5 Input 5
I6 Input 6
I7 Input 7
I8 Input 8
C1 Common 1 (Isolated)
I9 Input 9
I10 Input 10
I11 Input 11
I12 Input 12
C2 Common 2 (Isolated)
I13 Input 13
I14 Input 14
I15 Input 15
I16 Input 16
C3 Common 3 (Isolated)
OCS Top View – Shows
Corresponding I/O Pin
*
* I1
I2
I3
I4
19
I5
I6
I7
I8
C1
I10
I11
I12
C2
I13
I14
I15
I16
C3
12-24VDC
12-24VDC
12-24VDC
I1
I2
I3
I4
19
I5
I6
I7
I8
C1
I10
I11
I12
C2
I13
I14
I15
I16
C3
12-24VDC
12-24VDC
12-24VDC
001DIQ012
