PAGE 4 10 NOV 2006 MAN0369-05
DIM310/410
Information is subject to change without notice. SmartStack is a trademark of Horner APG, LLC.

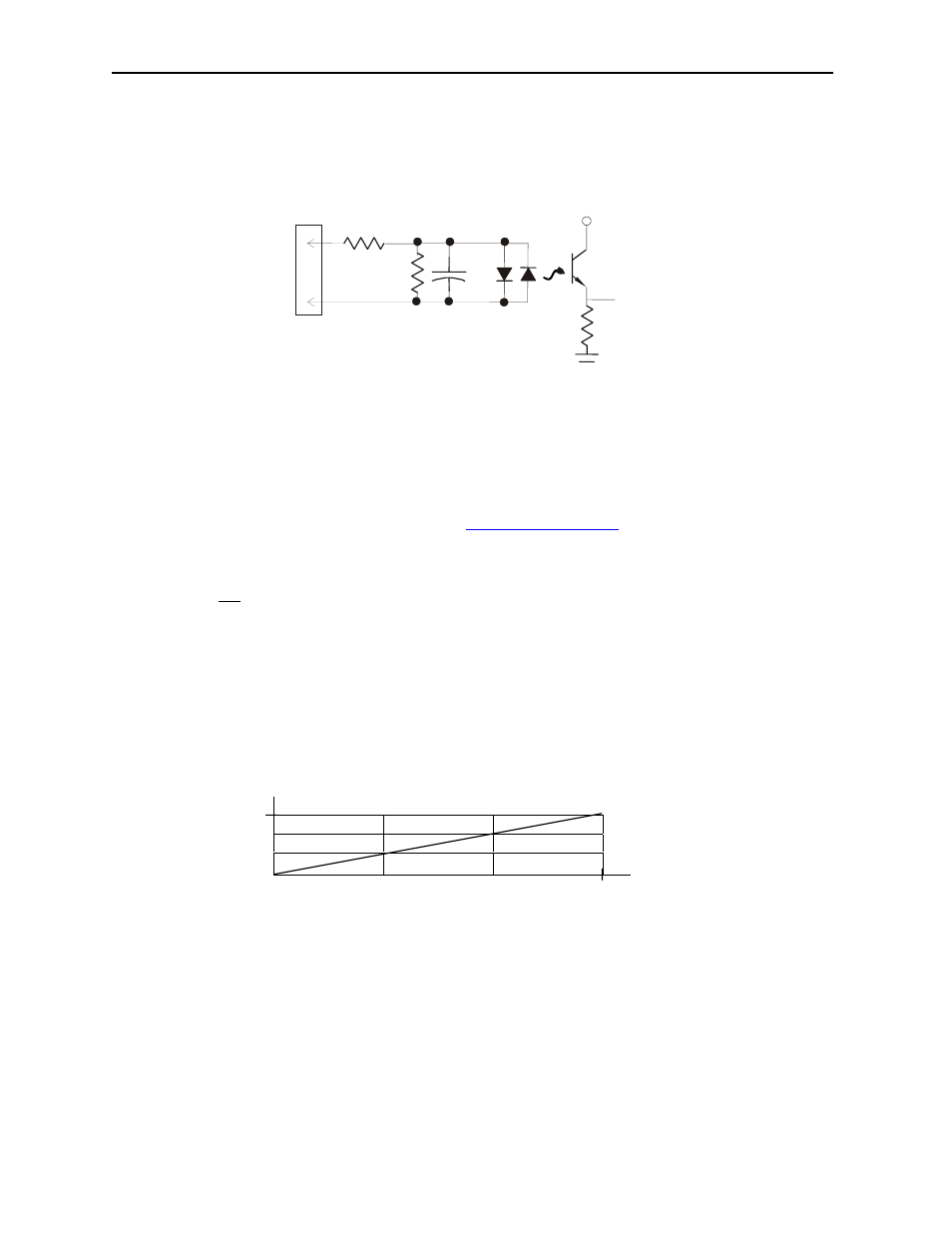

3 INTERNAL WIRING
4 CONFIGURATION
Preliminary configuration procedures that apply to SmartStack™ Modules are contained in the hardware
manual of the controller you are using. Refer to the
Additional References section in this data sheet for a
listing of hardware manuals. Although the module has no user defined parameters, the I/O Map describes
which I/O registers are assigned to a specific SmartStack™ Module and where the module is located in
the point map. The I/O Map is determined by the model number and location within the SmartStack™.
The I/O Map is not edited by the user.
5 INPUT CHARACTERISTICS
35VDC
0
0 .125(
±15%) V-A
Digital Input Chart
To
Controller
VCC
I/O Connector
C
I1
Field Side
SmartStack
