2 WIRING
2.1

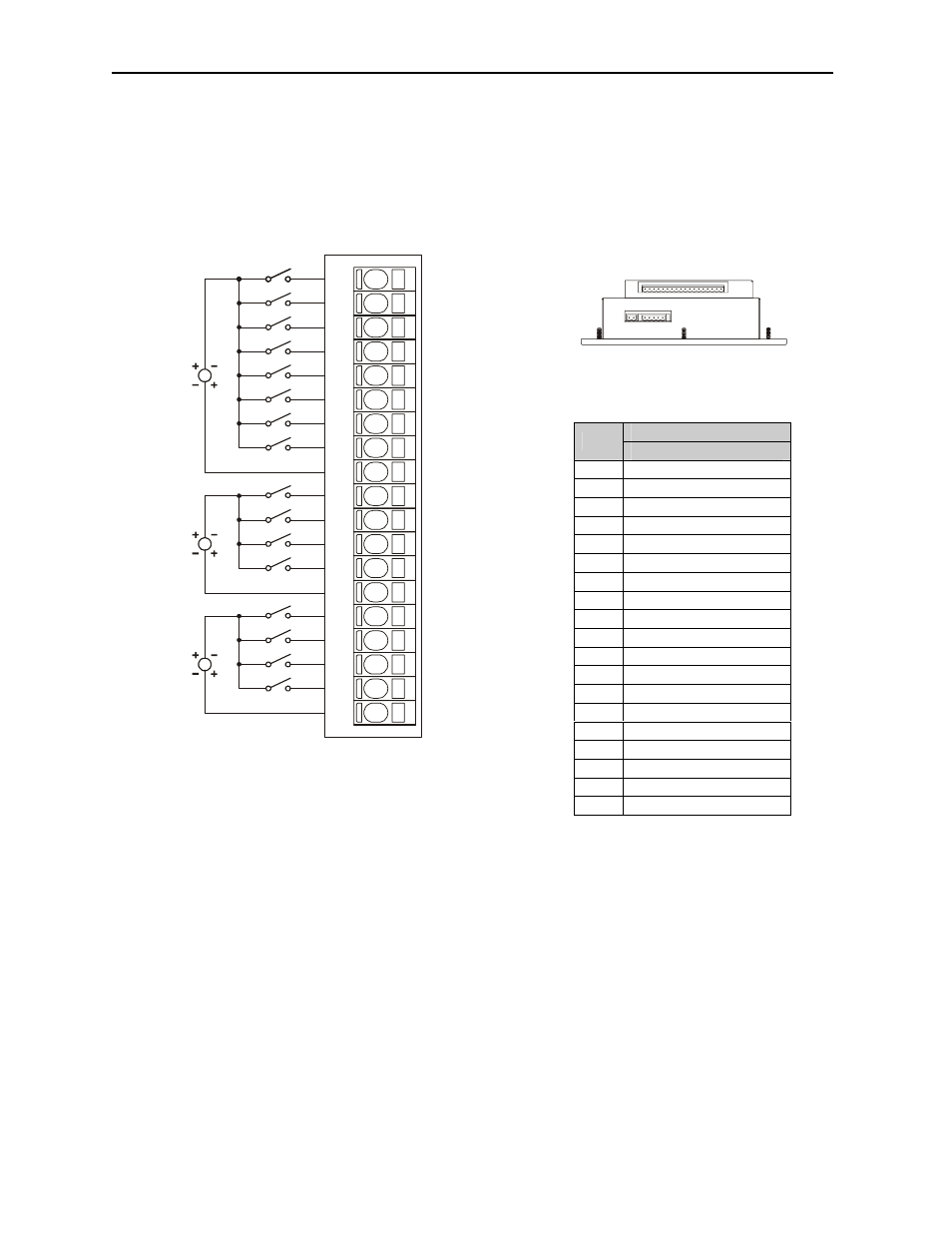

DIM310 / DIM410 Wiring
Signal
Pin
DIM310/410 INPUT
I1 Input
1
I2 Input
2
I3 Input
3
I4 Input
4
I5 Input
5
I6 Input
6
I7 Input
7
I8 Input
8
C1
Common 1 (Isolated)
I9 Input
9
I10 Input
10
I11 Input
11
I12 Input
12
C2
Common 2 (Isolated)
I13 Input
13
I14 Input
14
I15 Input
15
I16 Input
16
C3
Common 3 (Isolated)
*
OCS Bottom View – Shows
Corresponding I/O Pin
I1
I2
I3
I4
19
I5
I6
I7
I8
C1
I10
I11
I12
C2
I13
I14
I15
I16
C3
12-24VDC
12-24VDC
12-24VDC
001DIM003
*
