MAN0234-09 10 NOV 2006 PAGE 3
ADC010-110
Information is subject to change without notice. SmartStack is a trademark of Horner APG, LLC.
4 CONFIGURATION
Note: The status of the I/O can be monitored in Cscape Software.
Preliminary configuration procedures that apply to SmartStack™ Modules are contained in the hardware
manual of the controller you are using. Refer to the
Additional References section in this data sheet for a
listing of hardware manuals.
Selecting the I/O Map tab provides information about the I/O registers, which are assigned to a specific
SmartStack™ Module and where the module is located in the point map. The I/O Map is determined by
the model number and location within the SmartStack™. The I/O Map is not edited by the user.
Module Setup Tab
a) Input range for each channel may be selected independently.
b) Filter Constant sets the level of digital filtering according to the following chart.
Digital Filtering:

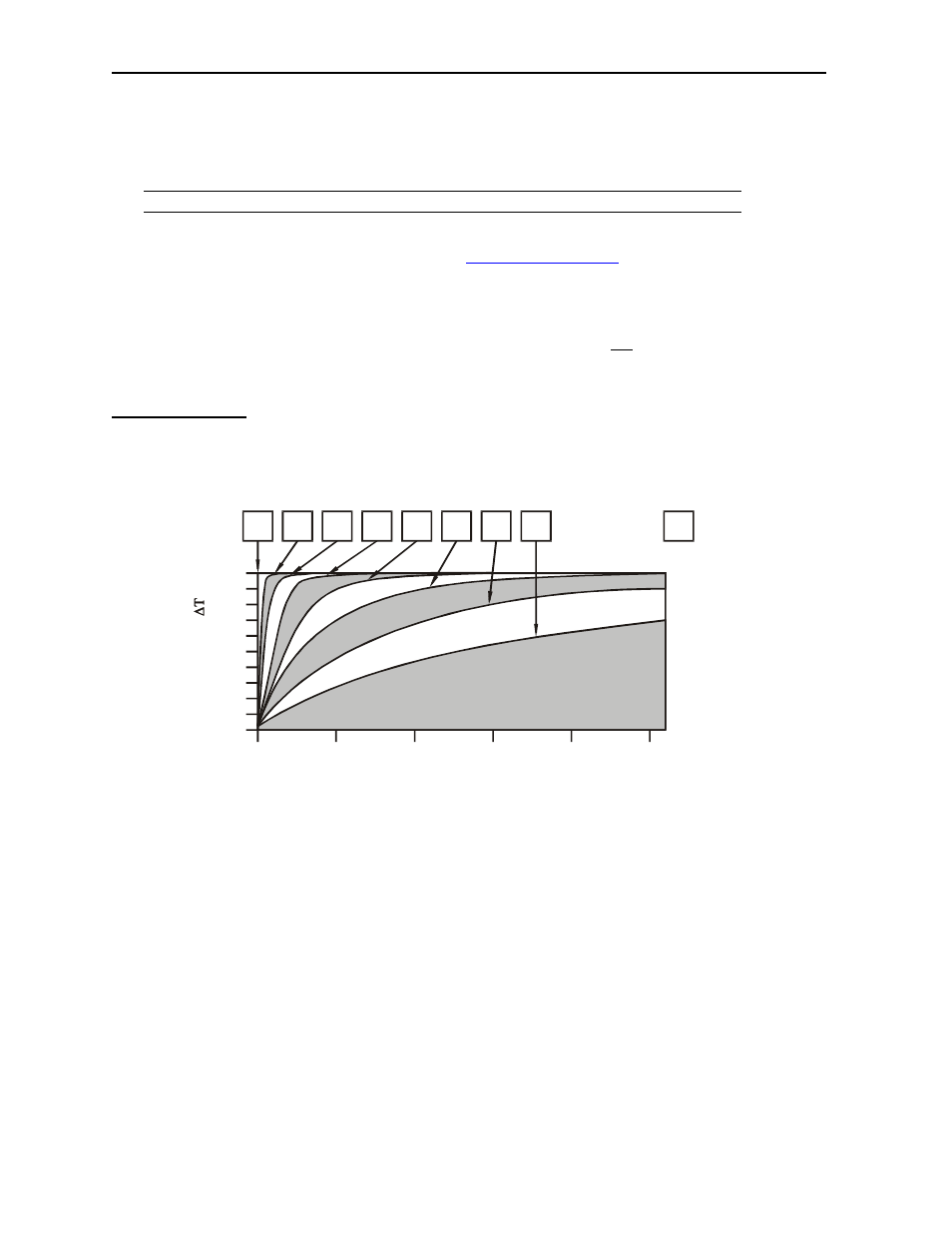

The illustration above demonstrates the effect of digital filtering (set with Filter Constant)
on module response to a temperature change.
60
20
100 40 80 20
0
10
100
90
80
70
60
50
40
30
Scans 0
1 2 3 4 5 6 0 7
%
C
om
pl
et
e
[
]
Filter
Constant
