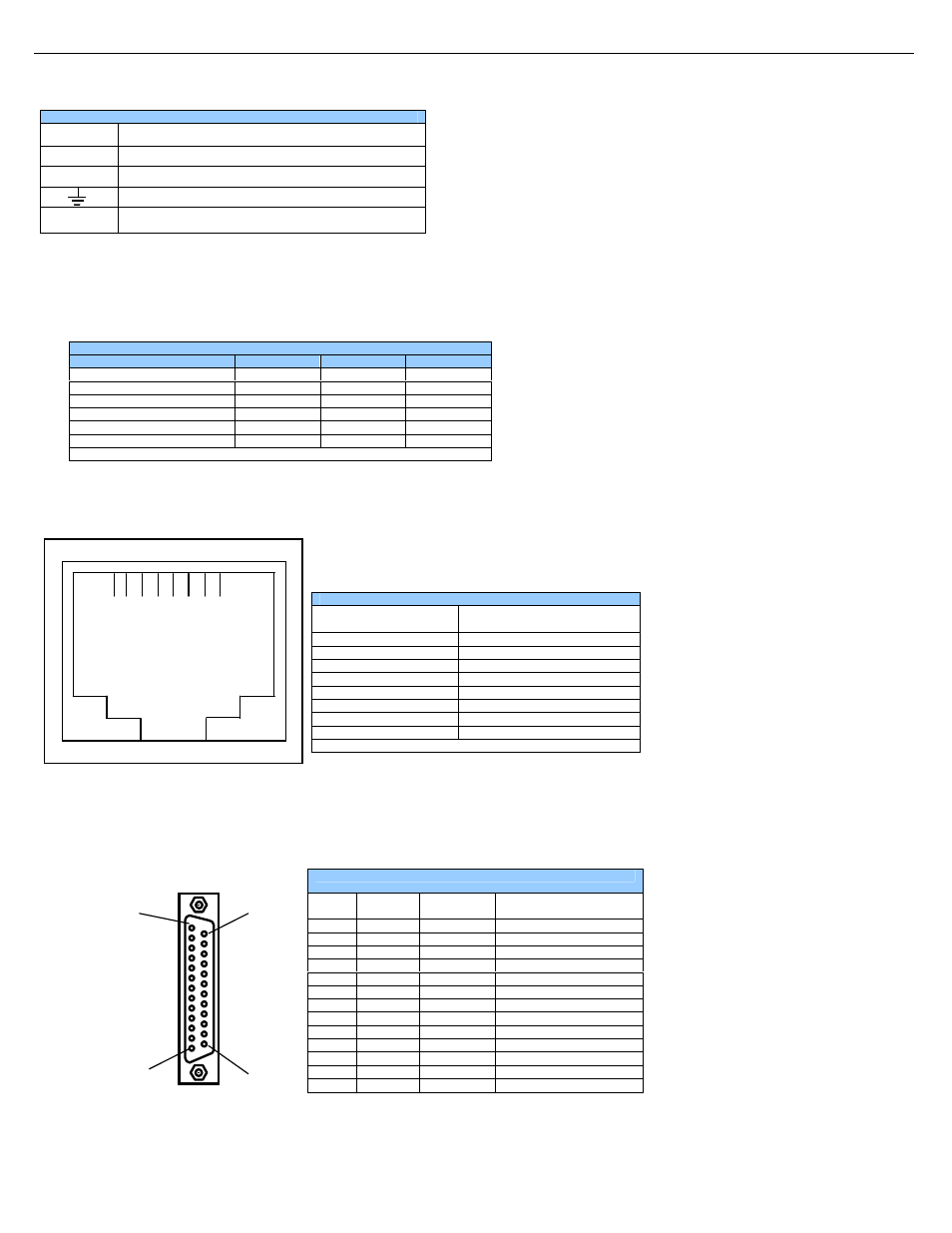

background image

MAN0889-03-EN

Specifications / Installation

__________________________________________________________________________________________________________________________________________________
11/20/2009 Page 3 of 6 1023

3.3.1

Primary Power Port / Grounding

Table 3 – Primary Power Port Pins

Signal Pin

Description

V+

Input power supply voltage

V-

Input power supply ground

Frame Ground

Power LED

The front panel has a Power LED which illuminates when

the unit is ON

Note: Power Supply Voltage Range is from 24VDC

±±±±

10%.





















a.

Port 1 (MJ1) / Port 2 (MJ2) Modular Jacks







Table 5 – Port 1 (MJ1) / Port 2 (MJ2) Pins

Pin

Signal

1

+SD/RD

2

-SD/RD

3

+5V

4

+5V

5

0V

6

0V

7

RXD

8

TXD

Output power supply: Max. 150mA



Figure 3 – Close-up of Port 1 (MJ1) /

Port 2 (MJ2) (RS-232 and RS-485)



b.

Port 3 (CN1) Connector












Figure 4 – Port 3 (CN1)

RS-232 / RS-485 Connector

1 2 3 4 5 6 7 8

1

13

14

25

Table 6 – Port 3 (CN1) Pins

Pin

#

Signal

Pin #

Signal

1

FG

14

+RTS

2

TXD

15

Not Used

3

RXD

16

Not Used

4

RTS

17

-RTS

5

CTS

18

-CTS

6

Not Used

19

+CTS

7

SG

20

Not Used

8

Not Used

21

Not Used

9

+5V

22

Not Used

10

0V

23

Not Used

11

Not Used

24

+RD

12

+SD

25

-RD

13

-SD

3.3.2

RS-232 Port / RS-485 Port

There are a variety of ways to connect to the RS-232 and RS-485 ports. You can use two modular
jacks (MJ1 and MJ2) or the 25-pin Dsub connector (CN1).

Table 4 – Ports and Functions (Port 1, 2, and 3)

Functions

Port 1 (MJ1)

Port 2 (MJ2)

Port 3 (CN1)

RS-232

RS-485

Hardware Handshaking

Programming

Ladder Function Controlled

Modem

*

*

* Not supported by Cscape Modem Function Blocks
