2.5.4
OCS651
Note: In the unlikely event that the label is removed, Port 1,2 and 3 correspond with the following markings on the case: Port 1
(MJ1); Port 2 (MJ2); Port 3 (CN1).

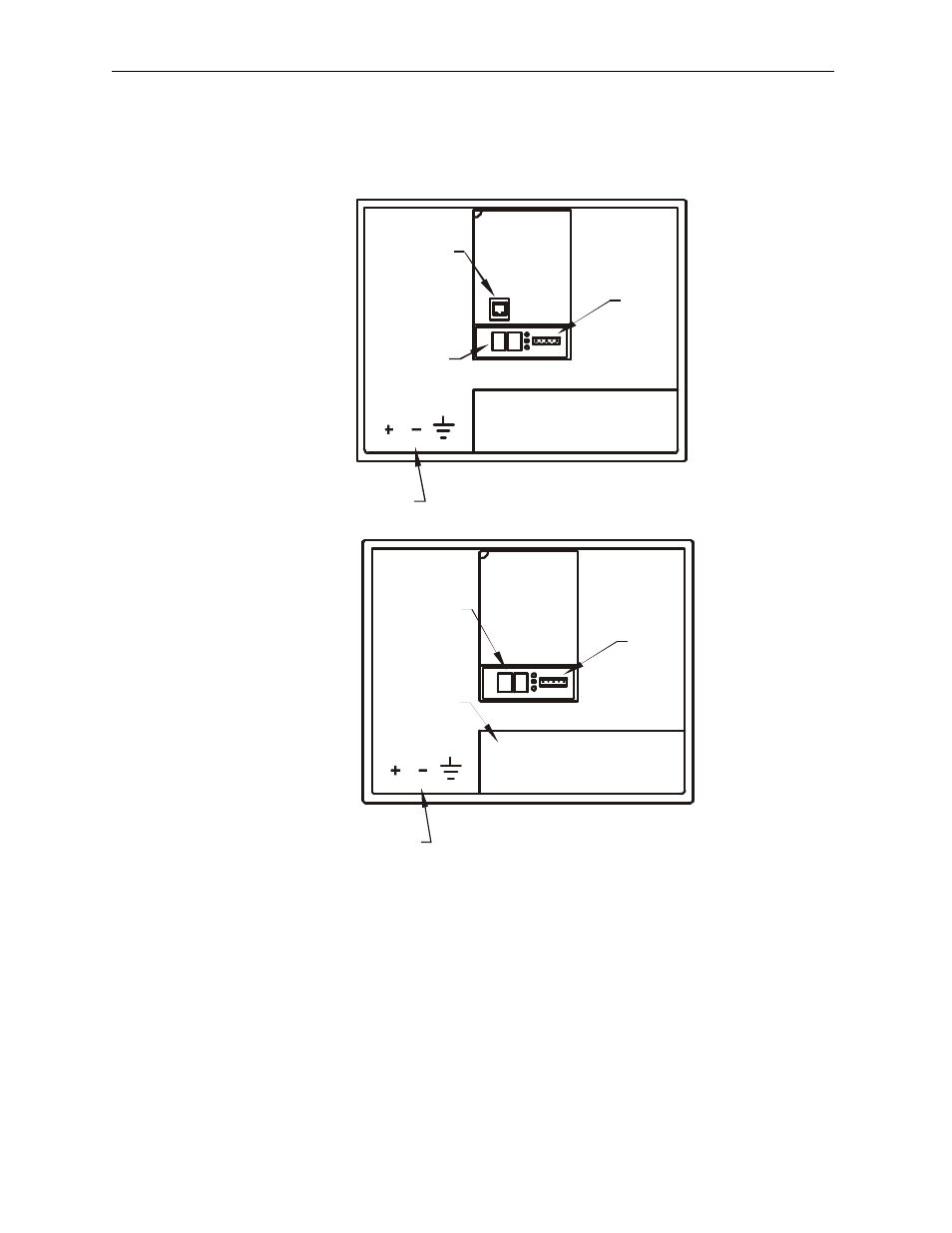

Figure 11 – 12” OCS651 Port and Connector Locations
Parallel
Port
Port 2 Port 3 Port 1
CAN
Connector
LAN
Primary Power
Connector
Fiber Optic
Cable Connector
Ethernet
Connector
(Present only on
earlier models
with Ethernet option)
Parallel
Port
Port 2 Port 3 Port 1
CAN
Connector
LAN
Primary Power
Connector
Fiber Optic
Cable Connector
001OCS021
Connector reserved
for future use.
(Later models have
built-in Ethernet
capabilities and do not
use this external
connector.)
