79
APPENDIX D

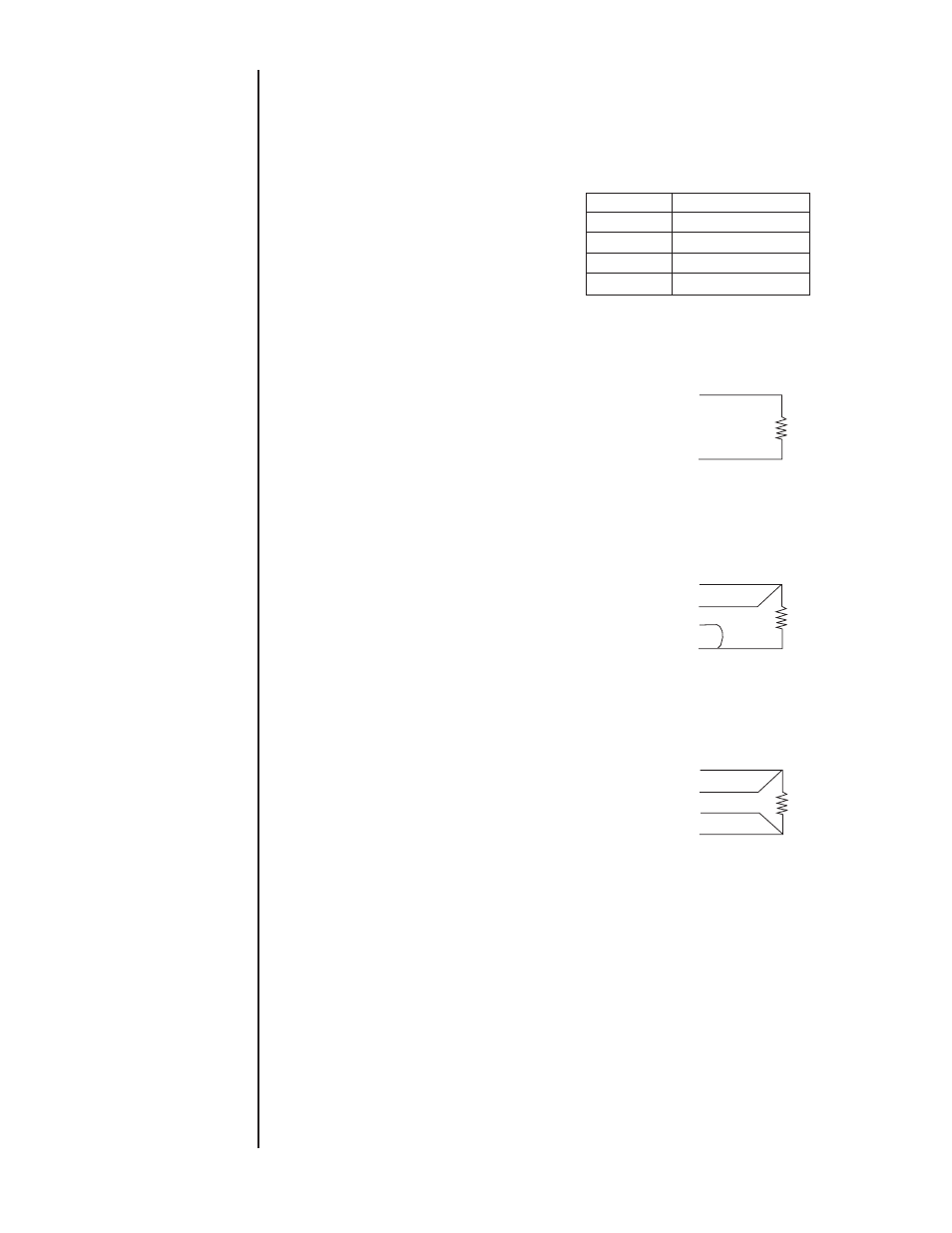

RTD PROBE CONNECTOR
2 WIRE RTD
TA4F
1
2
3
4
3 WIRE RTD
TA4F
1
2
3
4
4 WIRE RTD
TA4F
1
2
3
4
PIN FUNCTION
1 2W+
2 4W+
3 4W–
4 2W–
SWITCHCRAFT TINI QG (TA4F)
SECTION 16 d. APPENDIX D
