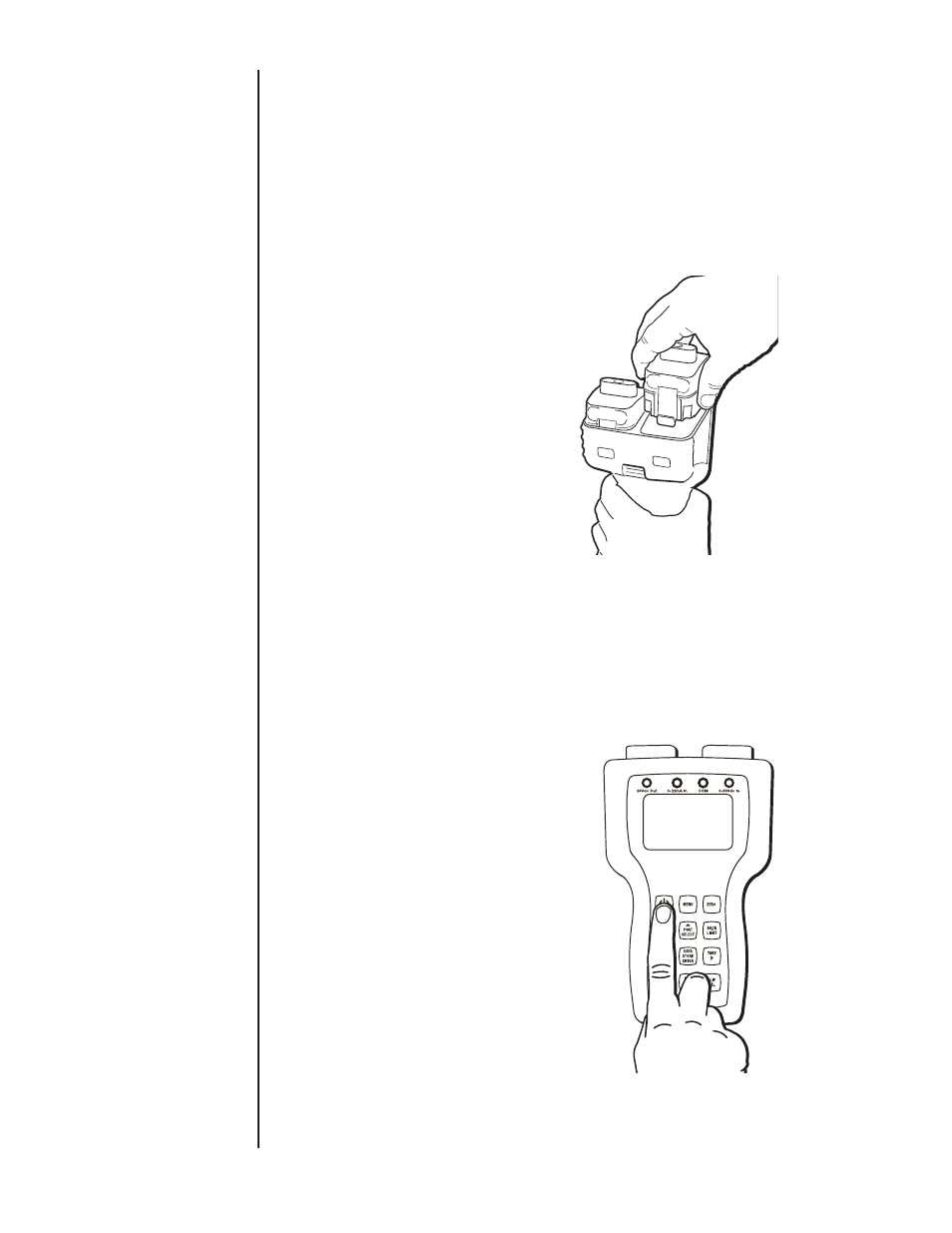

1. Hold the base unit, in one hand, with the keypad side DOWN.
2. Holding the Quick-Select module to be installed in the other
hand, align the module with the locking tab up, with the module
bay on the base unit.
3. Slide the Quick-Select module into the base unit until the
retaining/release tab catches in the square cutout in the module
bay of the base unit. This will lock the Quick-Select module into
the base unit. Installation is now complete
Note:
If only one module is to be used, install the Quick-Select System
Protection module provided. Follow the same procedure to install
the system protection module as described above.
Removal of Quick-Select modules
1. Hold the base unit, in one hand, with the keypad side DOWN.
2. Press the locking tab DOWN to release the module.
3. Grasp the Quick-Select module to be removed in the other
hand and gently pull to remove the module. There may be sig-
nificant resistance to pulling due to O-ring seals on the module
needed to maintain water tight integrity.
After the desired Quick-Select module(s) have been installed,
power the calibrator on by pressing the green power key.
When powering on, the LCD display will briefly indicate the
calibrator model number, serial number, owner information
and whether it is an intrinsically safe or not intrinsically safe
model. If pressure or temperature modules are installed, serial
SECTION 12 STARTUP BASIC FUNCTION
0.054
PSI
0.86
inH20
SECTION 11 MODULE INSTALLATION
