Figure 3, Cut away view – Vaisala WXT520 User Manual
Page 22
User’s Guide ______________________________________________________________________
20 __________________________________________________________________ M210906EN-C
0803-028

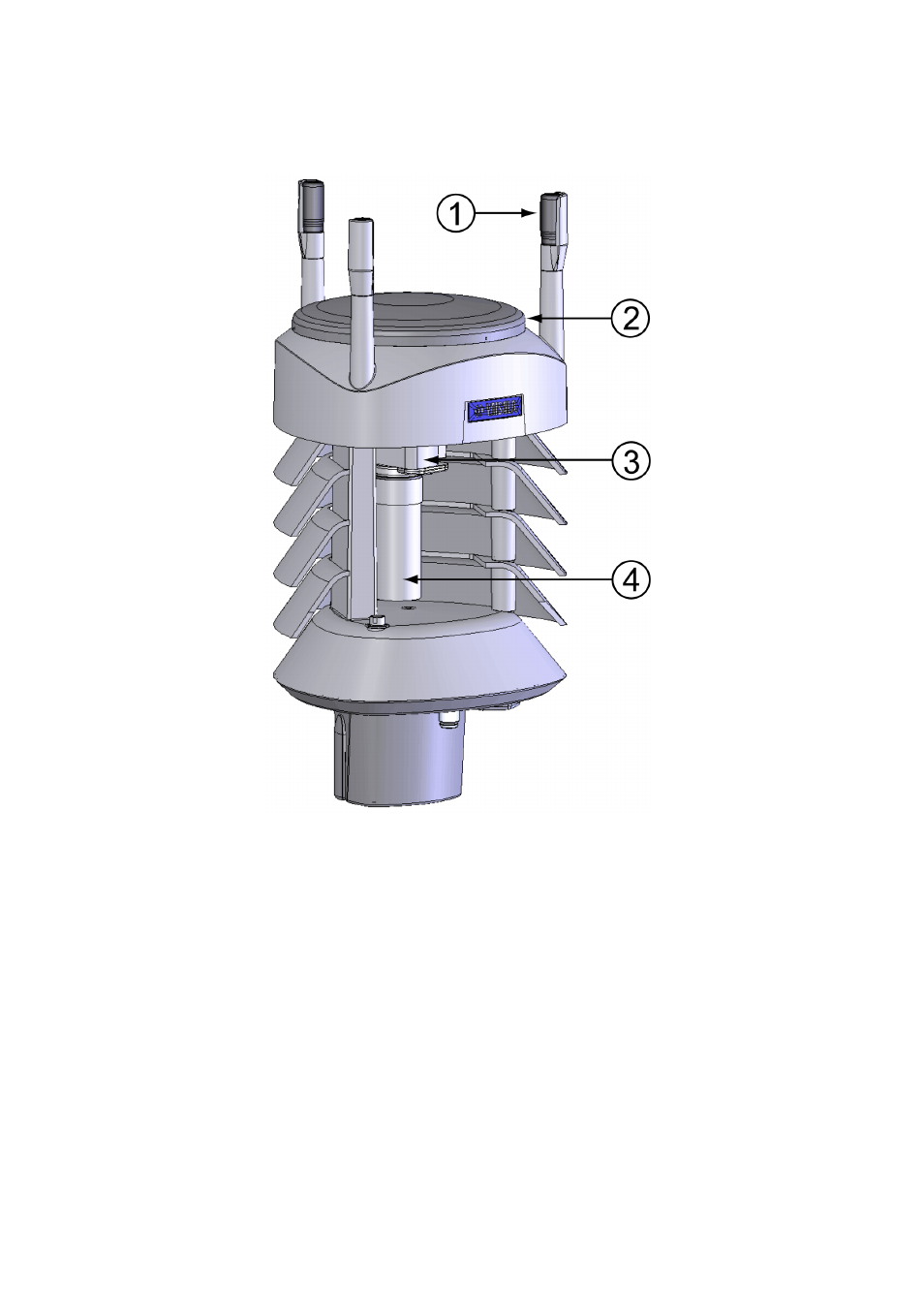

Figure 3
Cut Away View
The following numbers refer to
1
=
Wind transducers (3 pcs)
2
=
Precipitation sensor
3
=
Pressure sensor inside the PTU module
4
=
Humidity and temperature sensors inside the PTU module
