Chapter 2 __________________________________________________________ Product Overview
VAISALA_______________________________________________________________________ 19
WXT520 Transmitter Components
0804-021

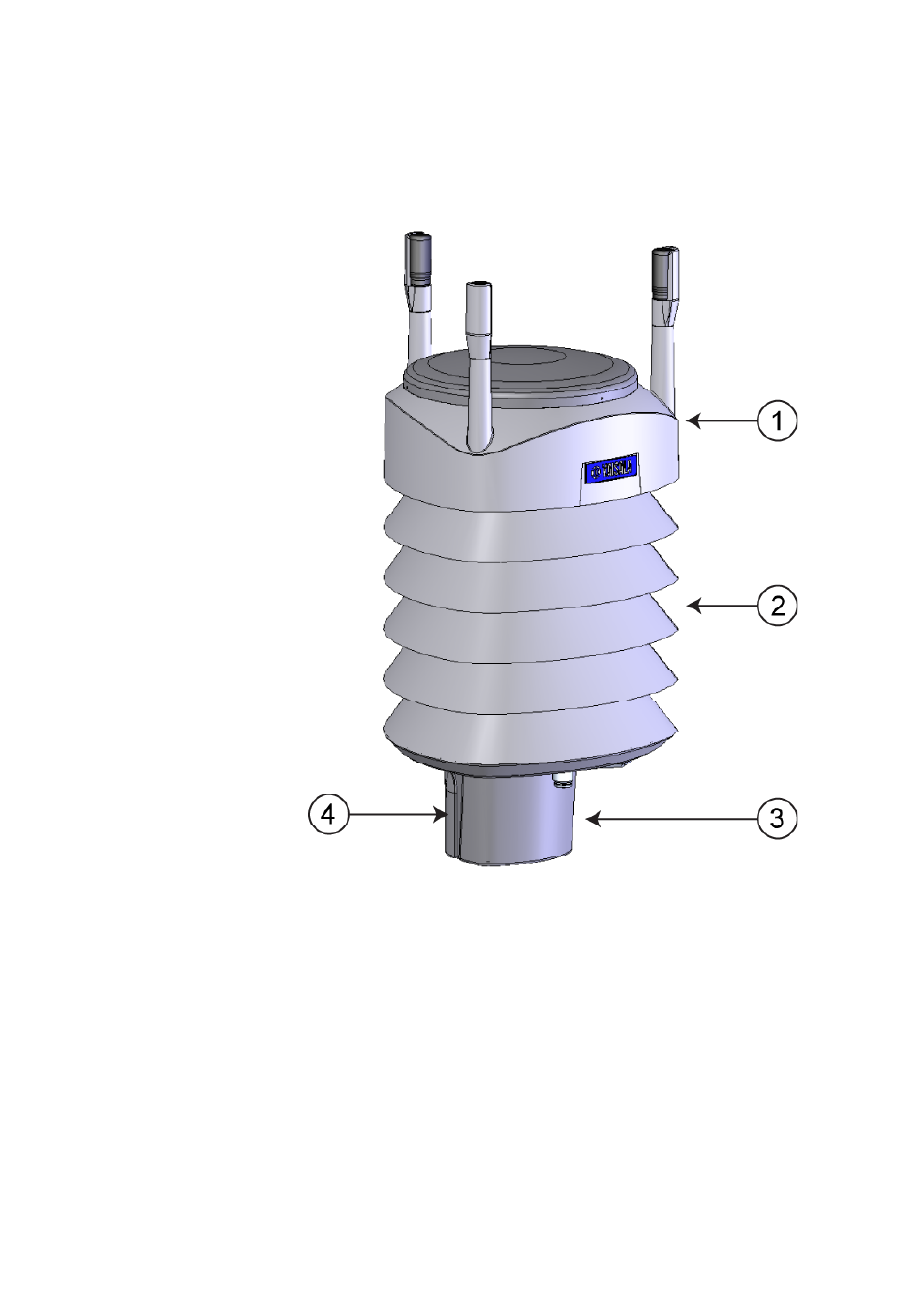

Figure 2
Main Components of Weather Transmitter WXT520
The following numbers refer to
:
1
=
Top of the transmitter
2
=
Radiation shield
3
=
Bottom of the transmitter
4
=
Screw cover
